Custom Automotive Grille Parts Rack with EVA and Pneumatic Support
See custom automotive grille parts rack with eva and pneumatic support in an automotive-parts logistics application. The video highlights pneumatic assistance, eva inserts or cushioning. It gives packaging engineers and procurement teams a product-level view of the rack arrangement shown for the stated component or application. Look at the frame, part-contact areas, loading access, base and moving features that are actually visible, then compare them with your own part size, weight, orientation and protection needs. The related product category is Automotive Parts Racks. For a custom quotation, send the part drawing or photos, quantity per rack, loading method, forklift or line-side conditions, stacking and empty-return needs, project quantity and destination.
By HAOFU Engineering Team · Updated 2026-08-10
Video focus: Custom Automotive Grille Parts Rack with EVA and Pneumatic Support. Recorded details: Pneumatic assistance, EVA inserts or cushioning. Closest product path: Automotive Parts Racks. Buyer decision: confirm part fit, access, handling and return conditions for the actual project. Next step: send drawings and route requirements through HAOFU customization.

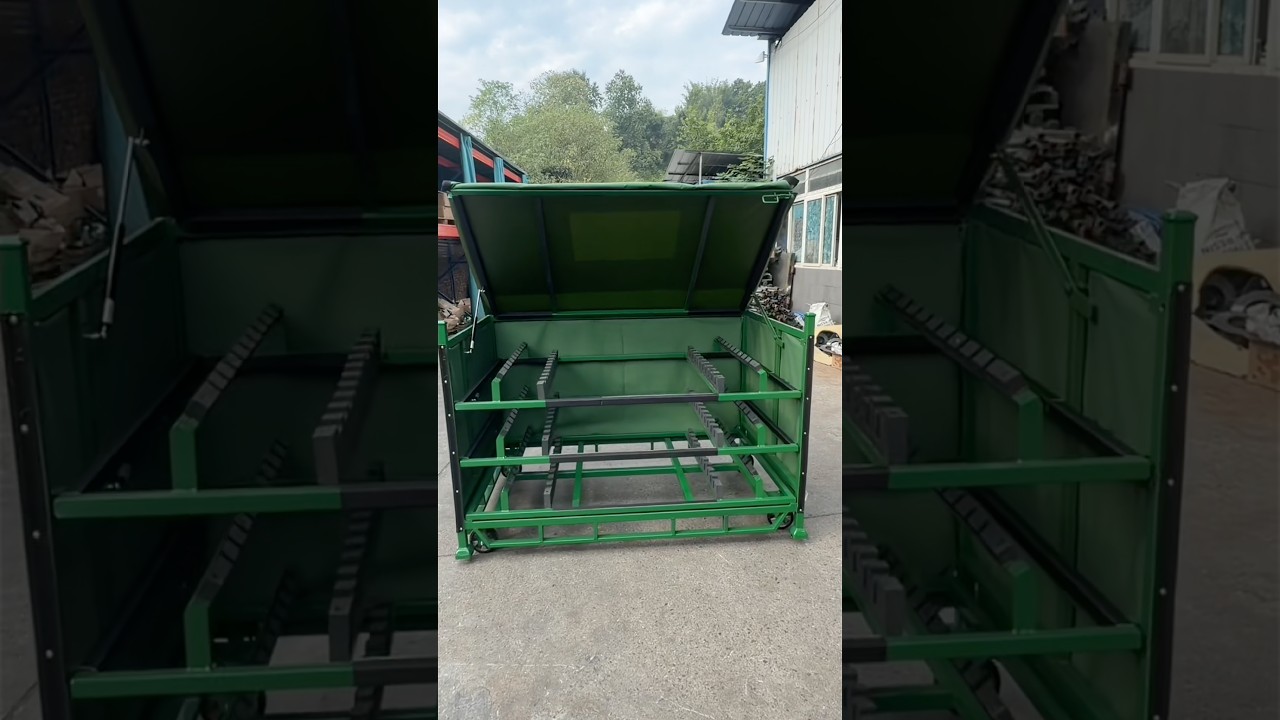

Direct answer: the custom automotive grille parts rack shown here uses EVA inserts, pneumatic support and an enclosed cover to control contact, separation and access for delicate grille components. The video captures final assembly after welding, grinding and powder coating.
Feature breakdown from the video
The EVA structure creates dedicated positions and separates the components. The pneumatic supports make the opening action easier to operate. The enclosed cover adds a barrier against dust and accidental contact during internal logistics and storage. These features work together only when the part geometry and loading motion are known.
| Design element | Purpose in the shown application | Input needed before design |
|---|---|---|
| EVA inserts | Position and separate grille parts | Surface sensitivity and contact geometry |
| Pneumatic support | Assist access to the opening mechanism | Opening motion, operator reach and service access |
| Enclosed cover | Reduce dust and accidental contact | Access frequency and environment |
| Steel frame and finish | Provide the reusable rack structure | Part quantity, route and finish specification |
Why the dunnage and rack should be designed together
A grille rack can fail the application even when the outer frame is strong if the internal contact strategy is wrong. The custom dunnage guidance from Southern Perfection describes foam, fabric, wire and steel locators as part of a reusable protection system. MHI's packaging overview is a useful reminder to check the product, packaging, handling and distribution context together.
Common mistakes when specifying a grille rack
- Using a generic foam block without mapping the grille's sensitive surfaces.
- Adding a cover without checking how often operators need access.
- Specifying pneumatic support without defining the opening motion and service plan.
- Approving the frame before reviewing an actual loading sample.
See the automotive parts rack range, read the EVA protection guide, and send your grille drawings through customization. The source footage is the automotive grille rack Short.
Questions fréquentes
- What does the Custom Automotive Grille Parts Rack with EVA and Pneumatic Support video show?
- It shows opening support: Pneumatic assistance; contact material: EVA inserts or cushioning. Use the example to identify useful features, then specify a new rack from your own part and route requirements.
- Which HAOFU product is most closely related to this video?
- The closest catalog route is Automotive Parts Racks. Use that product page to understand the category, then submit project data for a configuration matched to the actual part and route.
- Are the video details standard specifications for every project?
- The details shown describe this example. Dimensions, capacity, materials, interfaces and finish for a new project are selected from the actual part, handling route and quotation requirements.
- What information should a buyer send for a related project?
- Start with part drawing, sample photos and protected contact surfaces, quantity and orientation required in each rack, loading direction, operator access and handling equipment, stacking, storage and empty-return requirements. These inputs let the engineering discussion focus on part fit and the real handling route.
- How can I request a quotation for a similar rack?
- Use the customization form to send drawings, photos, quantity per rack, handling conditions, project volume and destination. HAOFU can then review the application and respond around the supplied requirements.
