User-supplied triangular tow eye and hitch interface references for industrial racks and carts

User-supplied interface references, not a complete tugger system or validated coupling. Final geometry, materials, loads and operating limits are project-specific.

Tugger Train Tow Hitch Systems

Custom tow bars, eyes, pins and hitch interfaces used to connect compatible material-handling racks or carts into a controlled tugger route. Geometry, articulation, caster layout, train conditions and site rules must be reviewed as one system.

TL;DR

A tow eye or drawbar is only one part of a tugger-train interface. Specify the towing vehicle, cart mass, train length, speed, route, turning envelope, gradients, caster arrangement, coupling height, articulation and safe operating rules before release.

At a Glance

Configuration
Custom to the part, rack interface and handling route
Primary role
Connection and articulation between compatible carts and a towing system
Required inputs
tug/coupling data, cart mass, train length, speed, route, caster layout, hitch geometry and site rules
Material / interface
Selected from the part contact, mounting and service requirements
Sample review
Check fit, access, handling and specified performance before production
Supply scope
Component-only or integrated rack/trolley scope, as quoted

Interface references

Reference components illustrate possible tow-eye geometry only. Compatibility and safe train behavior require a complete cart, caster, route and coupling review.

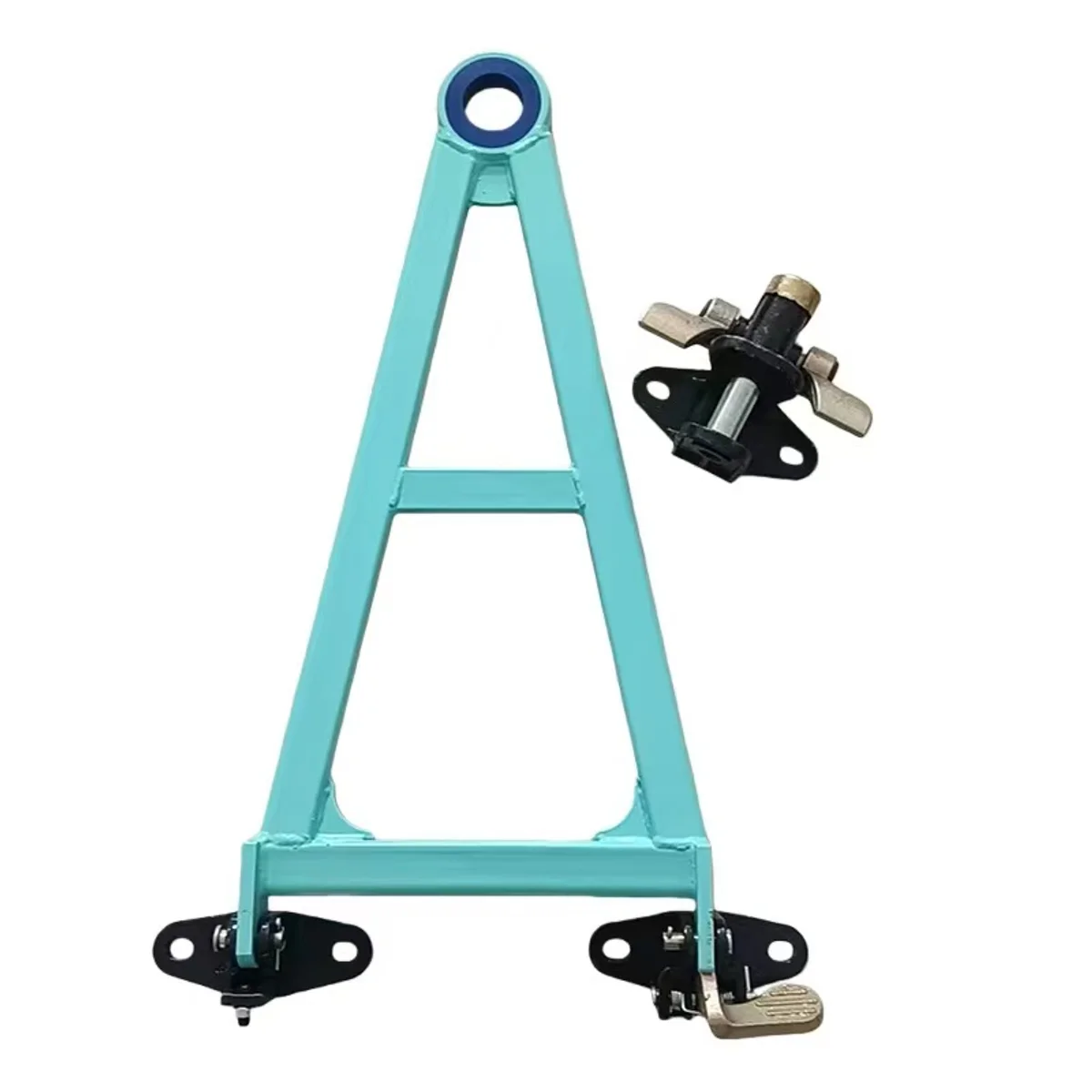

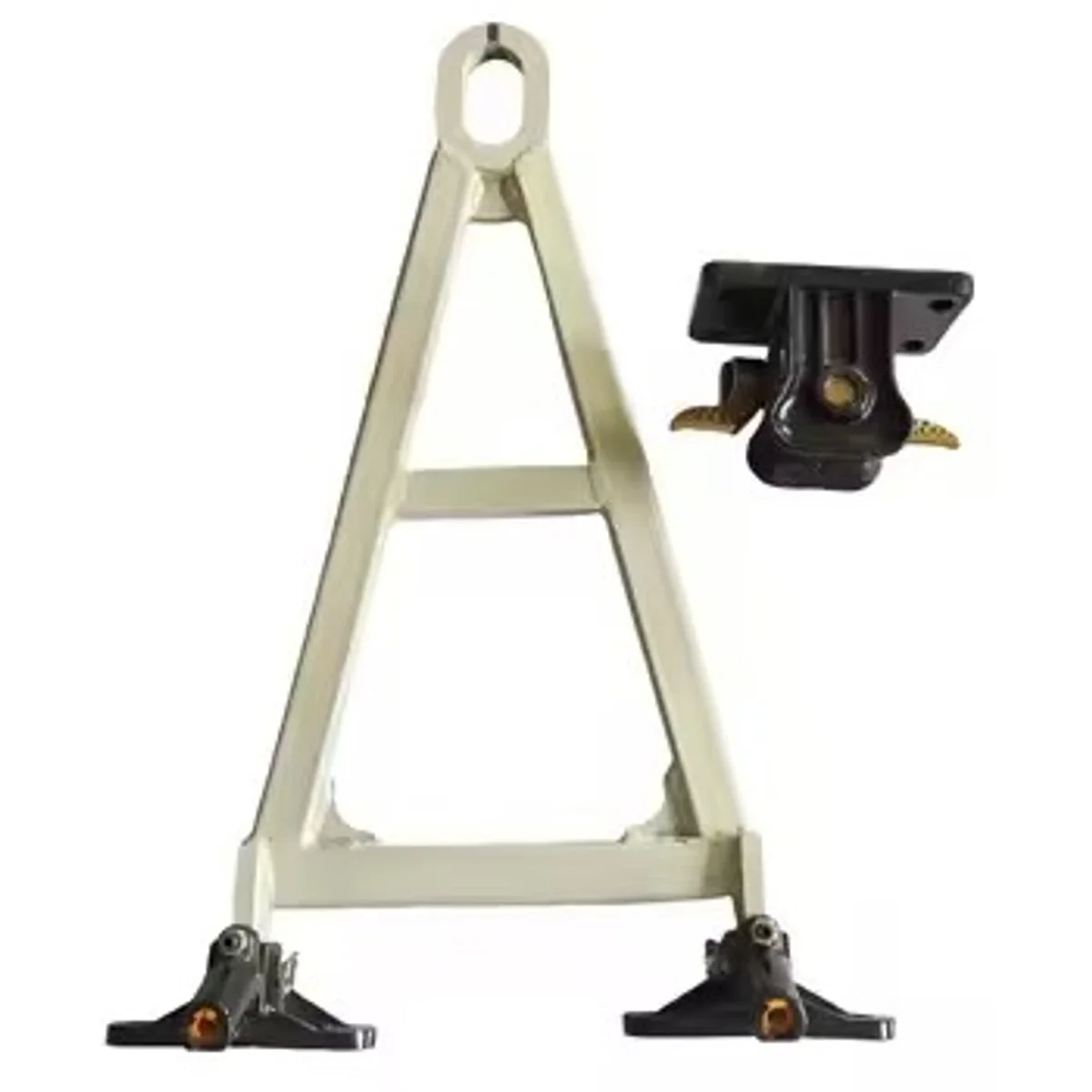

User-supplied triangular tow eye and hitch interface references for industrial racks and carts — configuration view 1User-supplied triangular tow eye and hitch interface references for industrial racks and carts — configuration view 2

Description

Tugger Train Tow Hitch Systems is a project-specific product or rack component used within returnable automotive packaging and in-plant material handling. HAOFU develops it around the approved part, contact restrictions, access, handling route and buyer specification. It is not presented as a universal off-the-shelf performance specification.

Buyers comparing complete carriers can also review Material Handling Trolleys for the broader rack or trolley category. This component page focuses on the project-specific interface and the inputs needed to review it.

What must be decided before design release

Project inputs and the decisions they control.
Input areaDesign decision
Tug and cart dataDefine towing vehicle, cart tare/payload and train arrangement.
RouteReview speed, turns, slopes, joints, crossings and stopping conditions.
Coupling geometrySet hitch height, pin/eye fit, articulation, clearances and retention.
Running gear and rulesCoordinate casters, tracking, brakes, inspection and operator procedure.

Suitable application scope

  • Connected material carts on fixed in-plant routes
  • Automotive line-side tugger delivery
  • Returnable rack movement where a validated tow interface is specified

Project review note: The reference images do not establish tow capacity, compatibility, safe speed, train length, turning behavior or compliance. The whole system and operating procedure need engineering approval.

RFQ information to send

  1. Towing vehicle and coupling data
  2. Cart tare, payload, quantity and train length
  3. Route map, speed, turns, gradients and thresholds
  4. Caster layout and wheel specification
  5. Site safety, braking, inspection and retention requirements

HAOFU manufactures in China and ships globally. Start with the custom rack and trolley design process, then send the part drawing, route and handling requirements. The quotation and drawing confirm dimensions, materials, capacity, interfaces, validation and commercial terms.

How the requirement moves to approval

  1. Define: collect controlled part, rack, route and buyer-standard inputs.
  2. Design: agree contact geometry, interfaces, access and maintainable components.
  3. Review: check the concept against loading, handling, return and service conditions.
  4. Validate: approve the sample and recorded acceptance criteria before production release.

Further reading

The following independent industry pages provide related terminology and specification context. Their company-specific claims do not describe HAOFU products or projects.

Configuration comparison

Choose the tugger train tow hitch systems interface before material or size

The useful choice is driven by how the component meets the part, rack and operating route. Compare the interface and service task before fixing a material callout.

ConfigurationUse it whenMain trade-offSend with the RFQ
Dedicated fixed interfaceOne controlled part or rack revision uses the same contact and mounting position.Direct positioning with a part-specific geometry; revisions may require a changed component.Part CAD, rack interface, permitted contact zones, tolerances and attachment details.
Replaceable modular interfaceContact pieces need planned inspection or replacement without rebuilding the carrier.Serviceable wear component; fastener access, indexing and spare identification need space.Replacement direction, tool clearance, fastener standard, identification and spare quantity.
Shared interface for variantsA defined part family can use common datums without unstable contact or interference.Fewer unique components; the full variant envelope and changeover method must be checked.Variant matrix, common datums, worst-case envelope and changeover sequence.

From requirement to quotation

Prepare a tugger train tow hitch systems RFQ

Connect the component to the controlled part, carrier and maintenance task so suppliers price the same requirement.

  1. 1

    Control the mating geometry

    Send the current part and rack data with revisions and the exact interface location.

    Output: Approved geometry baseline

  2. 2

    Mark contact and motion

    Show allowed contact, keep-out areas, load or movement direction and required clearances.

    Output: Interface and motion map

  3. 3

    Define material and environment

    State buyer material specifications, temperature, cleaning, exposure and identification needs that actually apply.

    Output: Material requirement

  4. 4

    Plan installation and service

    Add mounting access, replacement method, quantity, destination and sample-review expectations.

    Output: Quotation-ready component brief

Applications, Engineering & Buyer Tools

Move from product discovery to a project specification, application check and inspection plan.

Tugger Train Tow Hitch Systems — Frequently Asked Questions

Is the tugger train tow hitch system a standard catalog item?+

It is custom configured for the part, rack interface and service conditions. Use the reference images to choose a product family, then provide project data for final dimensions and material selection.

What information is needed to quote tugger train tow hitch system?+

Please provide tug/coupling data, cart mass, train length, speed, route, caster layout, hitch geometry and site rules, plus target quantity, destination and any required material or inspection specification. HAOFU can then define the design, sample and quotation scope.

Can it be supplied for an existing rack or trolley?+

Potentially. Send the existing rack drawing, mounting details, photographs and the approved part data. The team will review fit, access, replacement and any effect on the complete carrier before proposing an interface.

How do I choose the right material and configuration?+

Choose the hitch geometry and rating from the tug, cart mass, train length, caster layout, speed and route. Confirm the final choice on the drawing and, where needed, with a sample using the actual part and rack interface.

How is the design checked before volume production?+

Project inputs are converted into a drawing and sample plan. Review fit, contact, access, handling and any specified test or inspection criteria before production.
