CNC-Cut EVA Foam Rack Dunnage
Custom-routed EVA foam inserts and locating channels for lightweight automotive parts and rack contact positions. Cavity shape, foam grade, contact allowance and mounting method are developed from the approved part rather than copied from a catalog block.
HAOFU Engineering Team
Reviewed 2026-08-31
CNC-cut EVA rack dunnage uses a routed cavity to locate and separate a defined component. The useful RFQ inputs are part geometry, mass, contact restrictions, loading direction, position count, foam requirements and how the insert attaches to the rack.
At a Glance
- Configuration
- Custom to the approved part, rack and route
- Primary role
- Part-specific routed foam locating and separation
- Required inputs
- part geometry, mass, contact restrictions, position count, EVA specification and rack interface
- Material / interface
- Confirmed in the approved project drawing and specification
- Validation
- Fit, access, handling and controlled requirements agreed before production release
- Supply scope
- Component-only or integrated rack/trolley scope, as quoted
Component references
Product Gallery

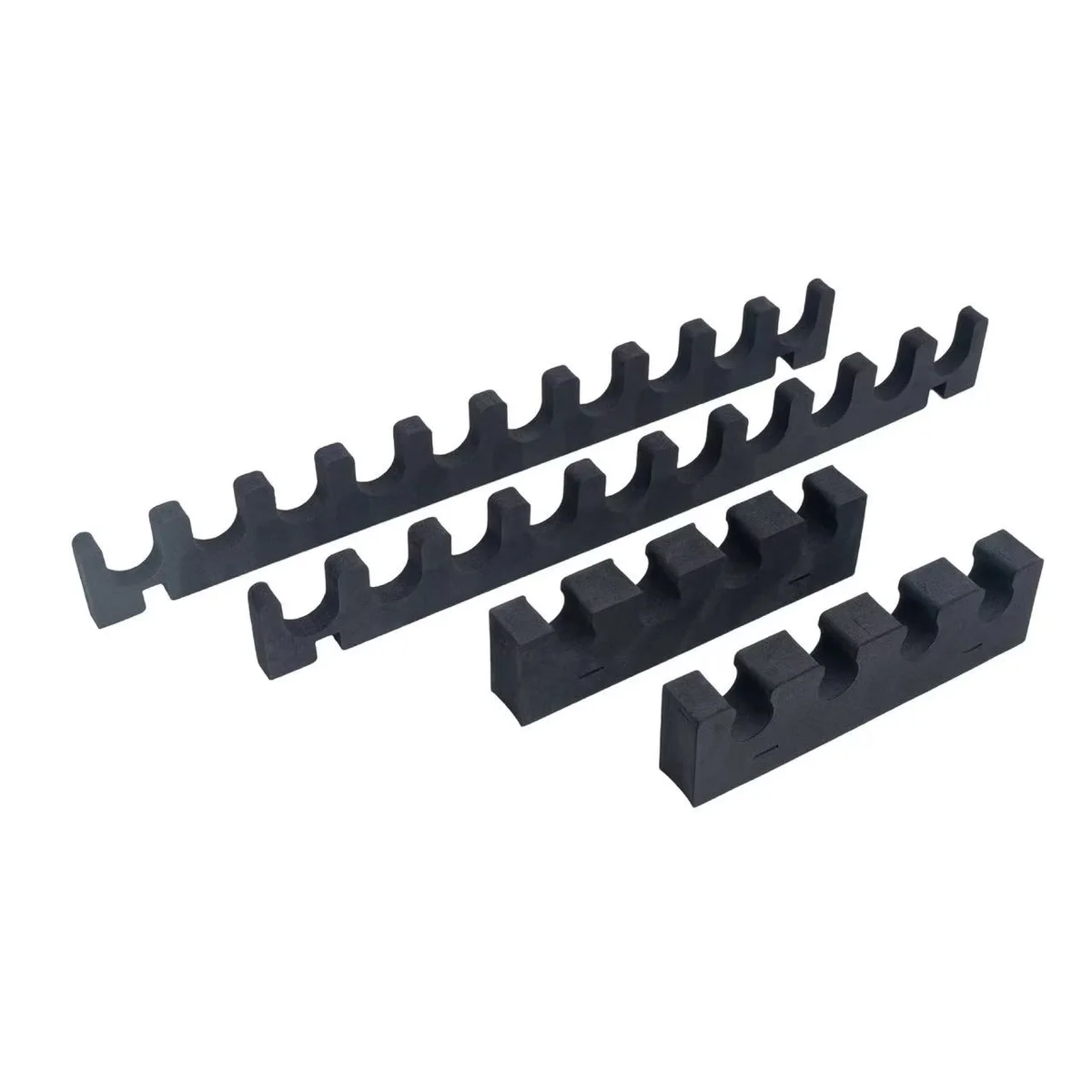

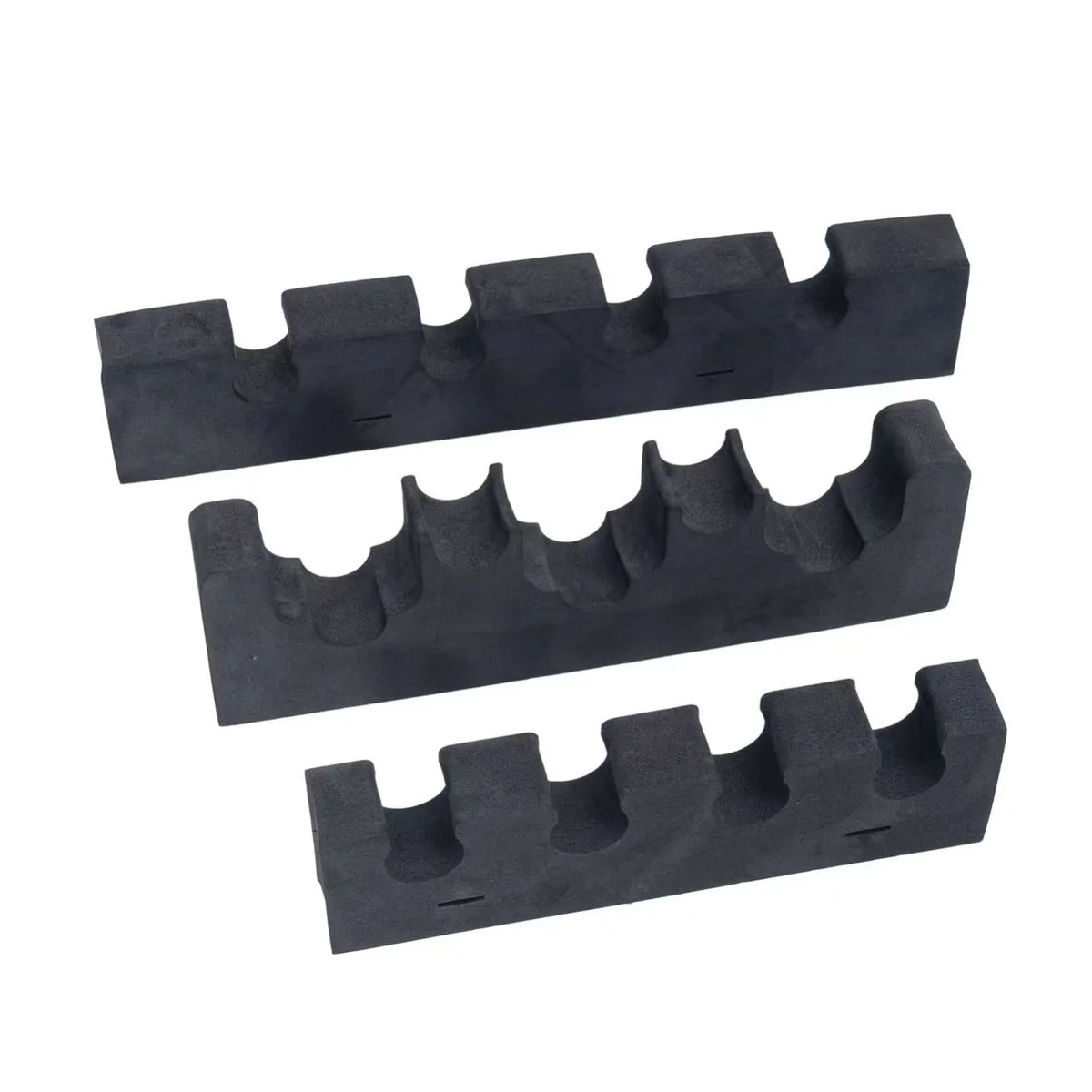

Reference views show routed foam profiles only. They do not establish material grade, density, tolerance, service life or compatibility with a specific component.
Description
CNC-Cut EVA Foam Rack Dunnage is a project-specific product or rack component used within returnable automotive packaging and in-plant material handling. HAOFU develops it around the approved part, contact restrictions, access, handling route and buyer specification. It is not presented as a universal off-the-shelf performance specification.
This page owns the commercial intent for CNC-cut EVA foam rack dunnage. Buyers comparing complete carriers should also review Automotive Parts Racks; the main product page remains the owner for the broader rack or trolley category.
What must be decided before design release
| Input area | Design decision |
|---|---|
| Controlled geometry | Translate the approved part and contact zones into the routed cavity. |
| Foam requirement | Confirm grade, hardness/density, color and any environment requirement. |
| Position and access | Set pitch, insertion direction and finger clearance. |
| Rack attachment | Define bonding, fasteners, retainers or replaceable insert modules. |
Suitable application scope
- Locating lightweight molded or machined parts
- Separating parts on trays, shelves or returnable racks
- Replaceable non-metal contact inserts for custom carriers
Claim boundary: No universal cushioning, anti-static, flame, chemical or durability performance is claimed. Any such requirement needs an identified material specification and project validation.
RFQ information to send
- Part CAD/drawing or representative sample
- Part mass and allowed contact areas
- Required position count and loading direction
- Specified EVA grade or buyer material standard
- Rack interface and replacement method
HAOFU manufactures in China and ships globally. Start with the custom rack and trolley design process, then send the controlled requirements for review. Final dimensions, material callouts, capacity, interfaces, validation and commercial terms belong in the approved quotation and drawing.
How the requirement moves to approval
- Define: collect controlled part, rack, route and buyer-standard inputs.
- Design: agree contact geometry, interfaces, access and maintainable components.
- Review: check the concept against loading, handling, return and service conditions.
- Validate: approve the sample and recorded acceptance criteria before production release.
Industry terminology references
The following industry pages were used to confirm buyer terminology and specification inputs. Their company-specific claims are not adopted as HAOFU claims.
Guides & Resources
Learn more about choosing and using cnc-cut eva foam rack dunnage.
Applications, Engineering & Buyer Tools
Move from product discovery to a controlled requirement, application review and inspection plan.
CNC-Cut EVA Foam Rack Dunnage — Frequently Asked Questions
Is the CNC-cut EVA foam rack dunnage a standard catalog item?+
No. It is configured from the controlled component, rack interface, duty and buyer requirements. Reference images show the product family; they do not define the final dimensions, material or performance.
What information is needed to quote CNC-cut EVA foam rack dunnage?+
Please provide part geometry, mass, contact restrictions, position count, EVA specification and rack interface, plus target quantity, destination and any controlled buyer standard. HAOFU can then define what is included in the design, sample and quotation scope.
Can it be supplied for an existing rack or trolley?+
Potentially. Send the existing rack drawing, mounting details, photographs and the approved part data. The team will review fit, access, replacement and any effect on the complete carrier before proposing an interface.
What does the reference image prove?+
It shows a configuration or component type only. It does not establish foam grade, tolerance, cushioning, ESD, flame or service-life performance. Final claims belong to traceable material data, an approved drawing and agreed validation records.
How is the design approved before volume production?+
The controlled inputs are converted into a design and sample scope. The buyer reviews fit, contact, access, handling and any specified test or inspection criteria before production release.
