Custom Polyurethane Rack Locators
Custom-molded or machined polyurethane support blocks, channels and locators for defined automotive rack contact points. Shape, hardness, mounting, clearance and acceptance criteria are set from the component and handling condition.
HAOFU Engineering Team
Reviewed 2026-08-31
Polyurethane rack locators can support, separate or guide a component at approved contact zones. Selection starts with geometry, part mass, surface sensitivity, expected motion, environment and attachment—not with a generic promise that one PU grade fits every rack.
At a Glance
- Configuration
- Custom to the approved part, rack and route
- Primary role
- Support, guidance or separation at approved contact zones
- Required inputs
- part and rack drawings, load/motion condition, PU material callout, geometry and mounting
- Material / interface
- Confirmed in the approved project drawing and specification
- Validation
- Fit, access, handling and controlled requirements agreed before production release
- Supply scope
- Component-only or integrated rack/trolley scope, as quoted
Locator references
Product Gallery

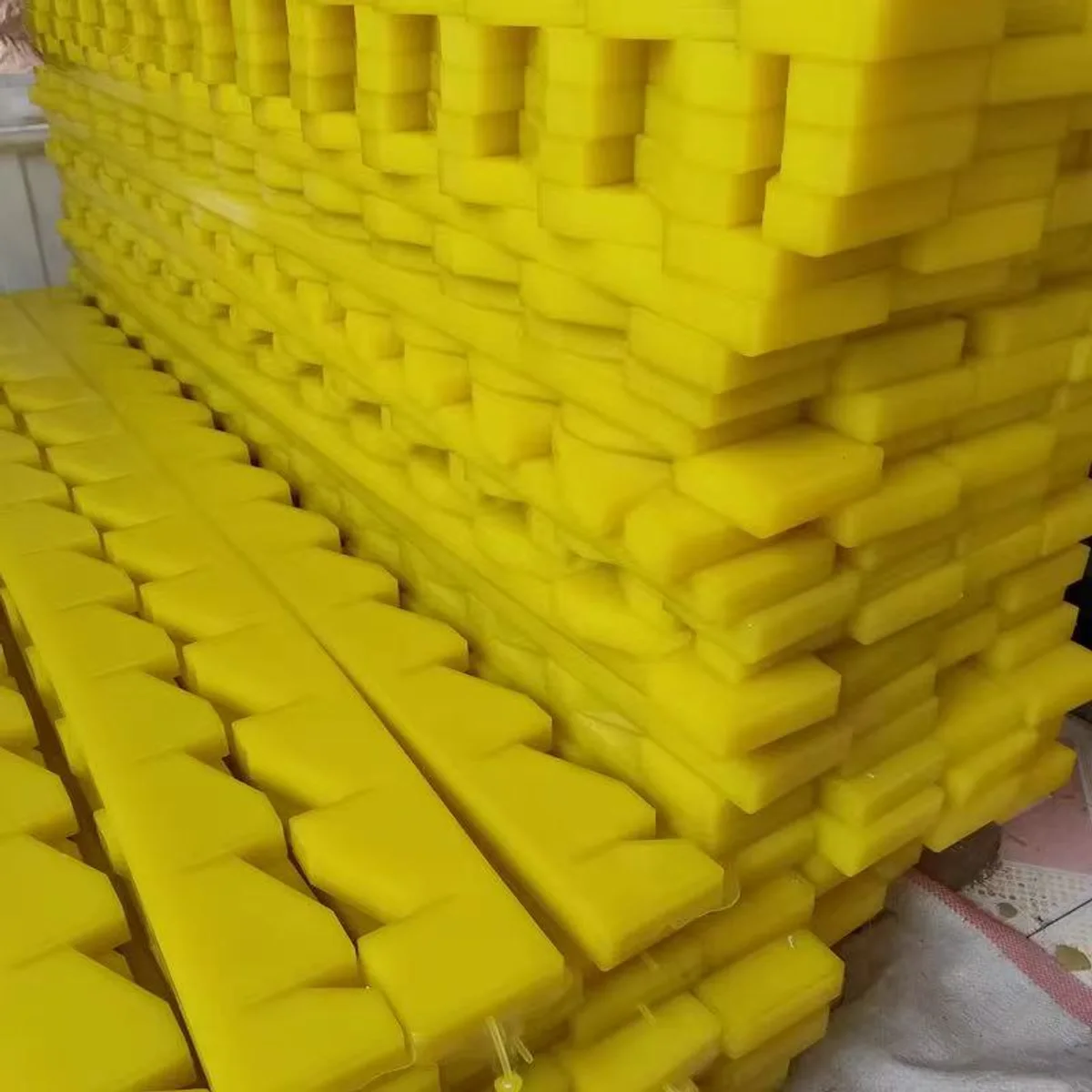

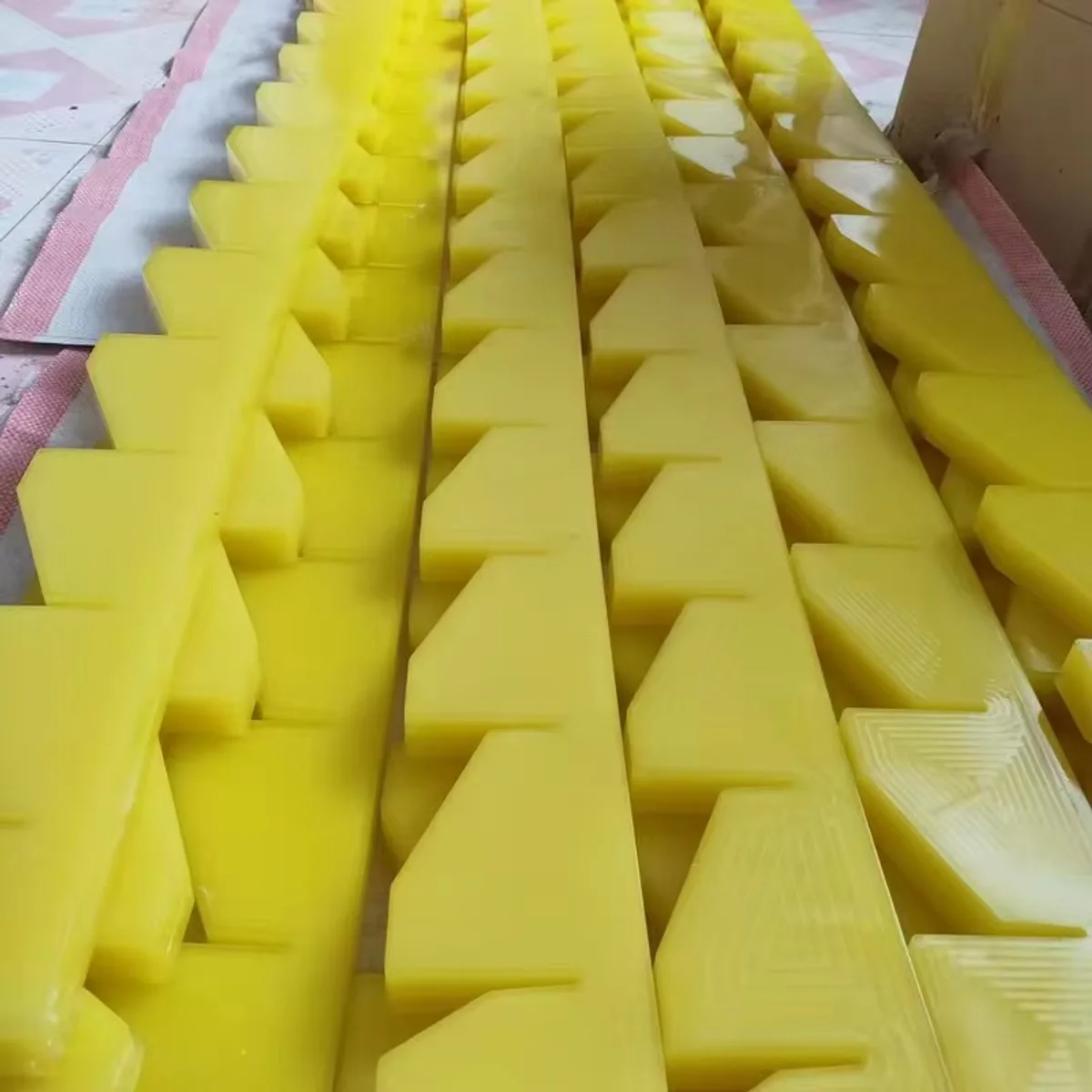

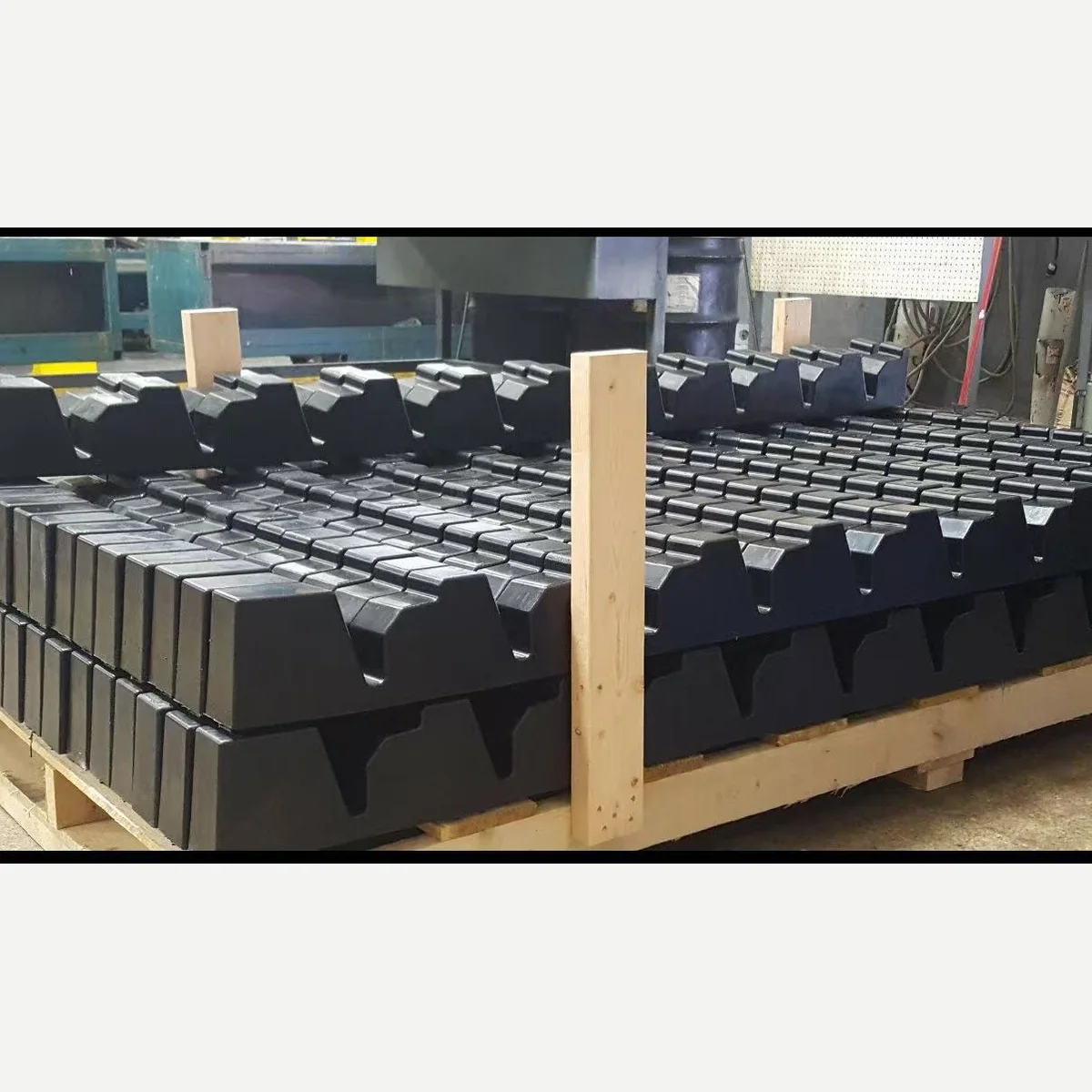

The gallery shows possible custom shapes, not a standard SKU or validated fit for an unreviewed part.
Description
Custom Polyurethane Rack Locators is a project-specific product or rack component used within returnable automotive packaging and in-plant material handling. HAOFU develops it around the approved part, contact restrictions, access, handling route and buyer specification. It is not presented as a universal off-the-shelf performance specification.
This page owns the commercial intent for custom polyurethane rack locators. Buyers comparing complete carriers should also review Automotive Parts Racks; the main product page remains the owner for the broader rack or trolley category.
What must be decided before design release
| Input area | Design decision |
|---|---|
| Contact geometry | Define the support face, locating direction and restricted surfaces. |
| Material callout | Confirm PU formulation, hardness and any buyer-specific standard. |
| Loads and motion | Review compression, sliding, impact and retention conditions. |
| Mounting and service | Set inserts, fasteners, replacement access and inspection points. |
Suitable application scope
- Support blocks for stamped panels and assemblies
- U-channels or saddles at repeated rack positions
- Replaceable rack dunnage for controlled component contact
Claim boundary: Abrasion, impact, vibration and service-life performance depend on the selected formulation, geometry and duty. They are not guaranteed by the word polyurethane alone.
RFQ information to send
- Part and rack drawings
- Static/dynamic contact condition and part mass
- Required hardness or buyer material specification
- Mounting interface and replaceability
- Environment, cleaning and acceptance requirements
HAOFU manufactures in China and ships globally. Start with the custom rack and trolley design process, then send the controlled requirements for review. Final dimensions, material callouts, capacity, interfaces, validation and commercial terms belong in the approved quotation and drawing.
How the requirement moves to approval
- Define: collect controlled part, rack, route and buyer-standard inputs.
- Design: agree contact geometry, interfaces, access and maintainable components.
- Review: check the concept against loading, handling, return and service conditions.
- Validate: approve the sample and recorded acceptance criteria before production release.
Industry terminology references
The following industry pages were used to confirm buyer terminology and specification inputs. Their company-specific claims are not adopted as HAOFU claims.
Guides & Resources
Learn more about choosing and using custom polyurethane rack locators.
Applications, Engineering & Buyer Tools
Move from product discovery to a controlled requirement, application review and inspection plan.
Custom Polyurethane Rack Locators — Frequently Asked Questions
Is the custom polyurethane rack locators a standard catalog item?+
No. It is configured from the controlled component, rack interface, duty and buyer requirements. Reference images show the product family; they do not define the final dimensions, material or performance.
What information is needed to quote custom polyurethane rack locators?+
Please provide part and rack drawings, load/motion condition, PU material callout, geometry and mounting, plus target quantity, destination and any controlled buyer standard. HAOFU can then define what is included in the design, sample and quotation scope.
Can it be supplied for an existing rack or trolley?+
Potentially. Send the existing rack drawing, mounting details, photographs and the approved part data. The team will review fit, access, replacement and any effect on the complete carrier before proposing an interface.
What does the reference image prove?+
It shows a configuration or component type only. It does not establish formulation, hardness, abrasion, impact or durability performance. Final claims belong to traceable material data, an approved drawing and agreed validation records.
How is the design approved before volume production?+
The controlled inputs are converted into a design and sample scope. The buyer reviews fit, contact, access, handling and any specified test or inspection criteria before production release.
