Custom Rubber Rack Protection Pads
Cut or molded rubber pads and strips for specified rack support, stop and contact locations. Compound, hardness, thickness, texture, bonding and replacement method are matched to the component, movement and operating environment.
Rubber rack pads may be used as non-metal contact layers, stops or support surfaces, but performance depends on compound and duty. Provide the contact pressure, movement, environment, attachment and buyer material requirements before choosing the pad.
At a Glance
- Configuration
- Custom to the part, rack interface and handling route
- Primary role
- Non-metal contact, support, stop or friction surface
- Required inputs
- contact function, load/movement condition, compound callout, dimensions, attachment and environment
- Material / interface
- Selected from the part contact, mounting and service requirements
- Sample review
- Check fit, access, handling and specified performance before production
- Supply scope
- Component-only or integrated rack/trolley scope, as quoted
Pad references
Product Gallery

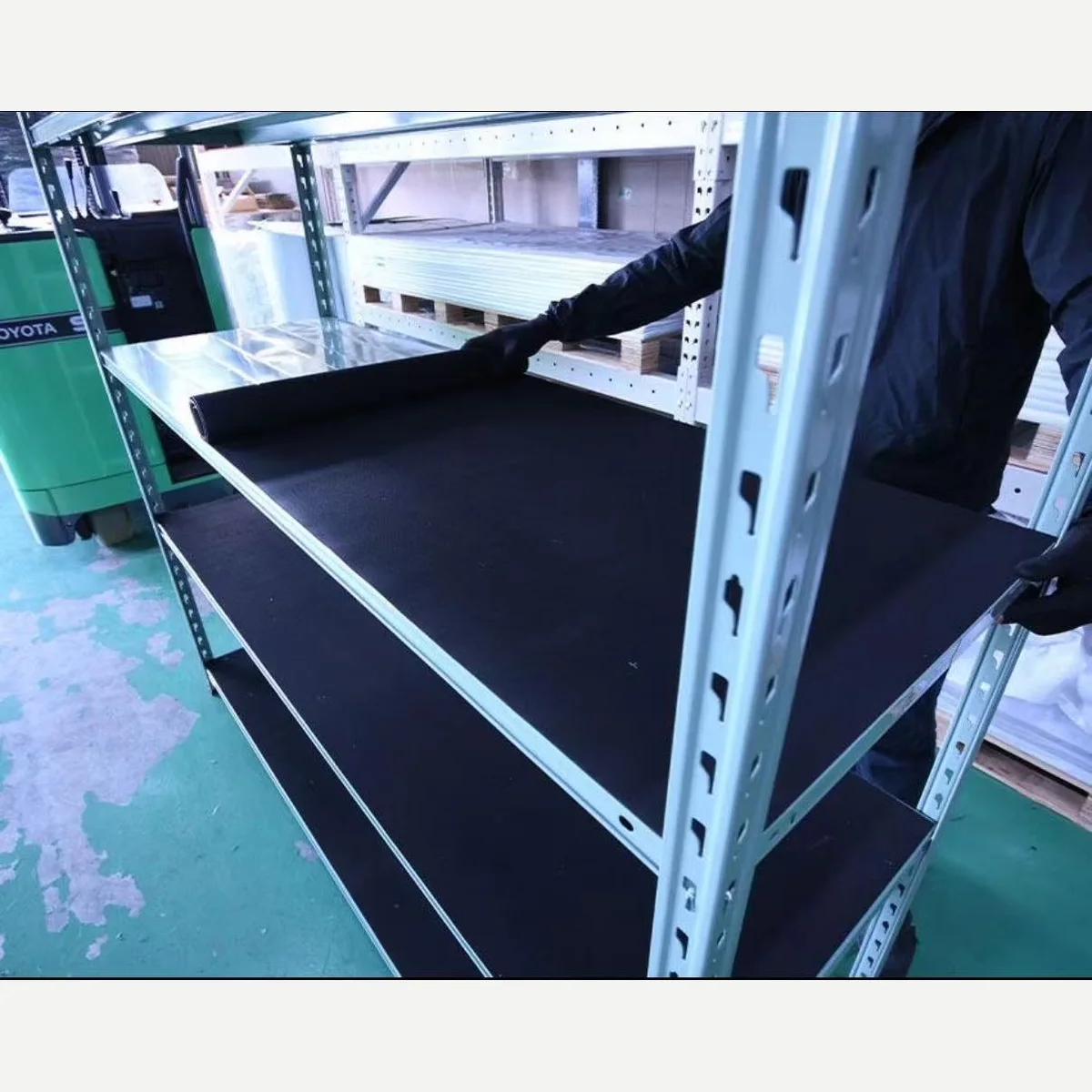

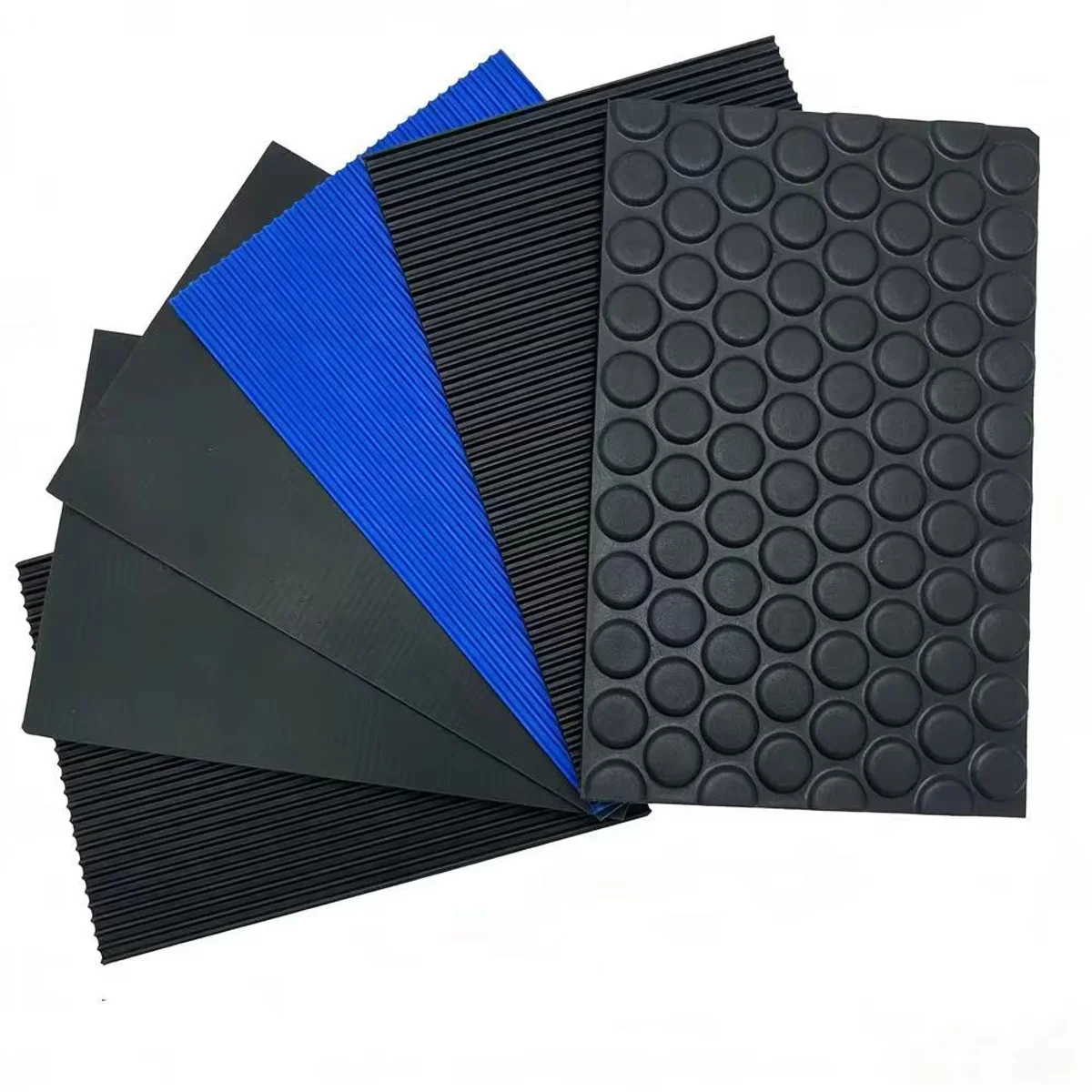

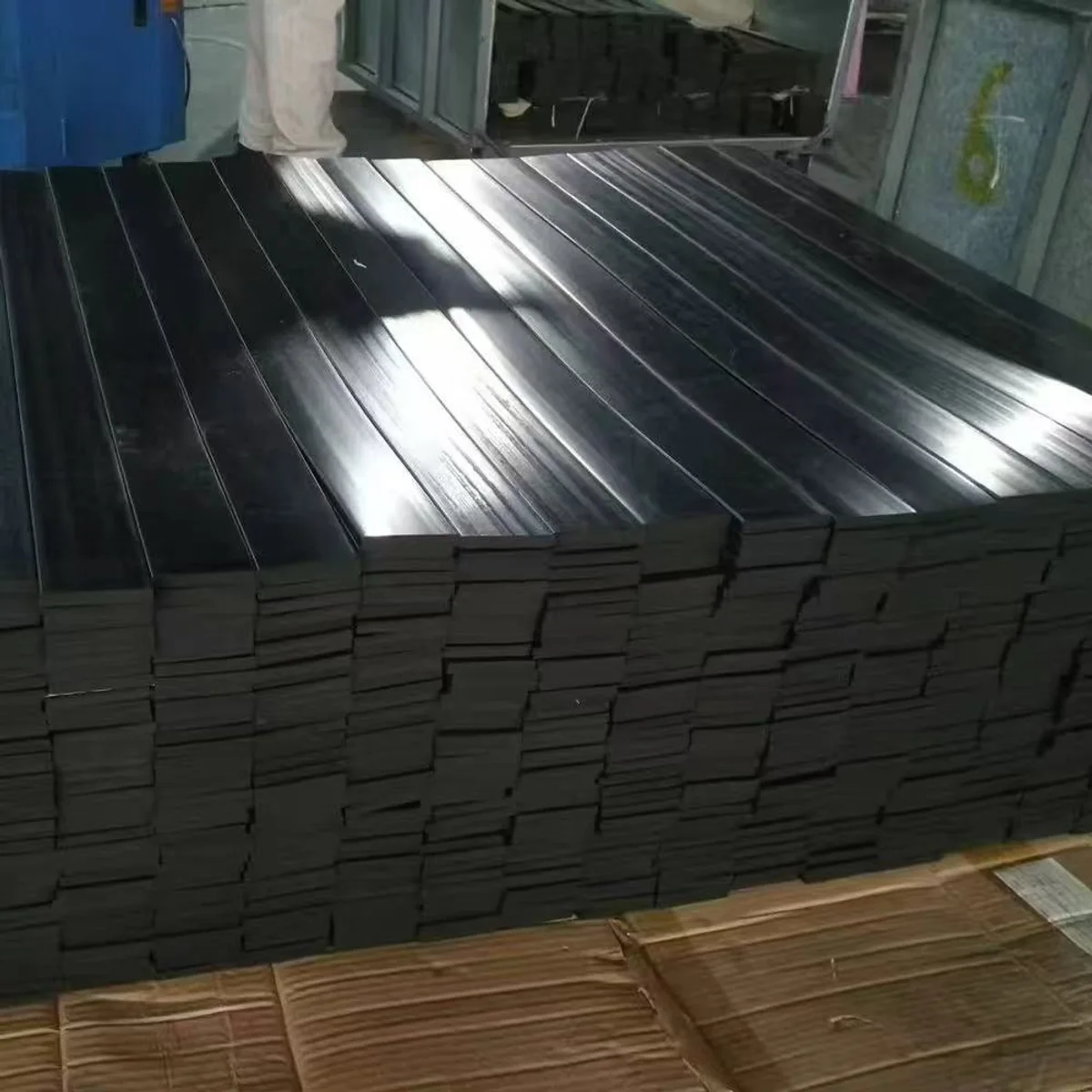

The images show possible surface patterns, strips and installed contact layers; they are not a universal material specification.
Description
Custom Rubber Rack Protection Pads is a project-specific product or rack component used within returnable automotive packaging and in-plant material handling. HAOFU develops it around the approved part, contact restrictions, access, handling route and buyer specification. It is not presented as a universal off-the-shelf performance specification.
Buyers comparing complete carriers can also review Automotive Parts Racks for the broader rack or trolley category. This component page focuses on the project-specific interface and the inputs needed to review it.
What must be decided before design release
| Input area | Design decision |
|---|---|
| Contact function | Define whether the pad supports, separates, stops or provides a friction surface. |
| Compound | Confirm hardness and any oil, chemical, temperature or buyer-standard requirement. |
| Geometry | Set thickness, edge shape, contact area and clearance. |
| Attachment | Choose bonding, fasteners, retainers and a replaceable service method. |
Suitable application scope
- Non-metal contact surfaces on shelves and rails
- Local bump stops or support strips
- Replaceable contact layers on returnable racks and trolleys
Project review note: Anti-slip, damping, scratch, vibration and service-life outcomes are not universal. They require an approved compound, interface design and validation in the actual duty.
RFQ information to send
- Contact location and part surface requirement
- Static, sliding or impact condition
- Rubber compound/hardness specification if controlled
- Dimensions, texture and attachment method
- Environment, cleaning and replacement criteria
HAOFU manufactures in China and ships globally. Start with the custom rack and trolley design process, then send the part drawing, route and handling requirements. The quotation and drawing confirm dimensions, materials, capacity, interfaces, validation and commercial terms.
How the requirement moves to approval
- Define: collect controlled part, rack, route and buyer-standard inputs.
- Design: agree contact geometry, interfaces, access and maintainable components.
- Review: check the concept against loading, handling, return and service conditions.
- Validate: approve the sample and recorded acceptance criteria before production release.
Further reading
The following independent industry pages provide related terminology and specification context. Their company-specific claims do not describe HAOFU products or projects.
Configuration comparison
Choose the custom rubber rack protection pads interface before material or size
The useful choice is driven by how the component meets the part, rack and operating route. Compare the interface and service task before fixing a material callout.
| Configuration | Use it when | Main trade-off | Send with the RFQ |
|---|---|---|---|
| Dedicated fixed interface | One controlled part or rack revision uses the same contact and mounting position. | Direct positioning with a part-specific geometry; revisions may require a changed component. | Part CAD, rack interface, permitted contact zones, tolerances and attachment details. |
| Replaceable modular interface | Contact pieces need planned inspection or replacement without rebuilding the carrier. | Serviceable wear component; fastener access, indexing and spare identification need space. | Replacement direction, tool clearance, fastener standard, identification and spare quantity. |
| Shared interface for variants | A defined part family can use common datums without unstable contact or interference. | Fewer unique components; the full variant envelope and changeover method must be checked. | Variant matrix, common datums, worst-case envelope and changeover sequence. |
From requirement to quotation
Prepare a custom rubber rack protection pads RFQ
Connect the component to the controlled part, carrier and maintenance task so suppliers price the same requirement.
- 1
Control the mating geometry
Send the current part and rack data with revisions and the exact interface location.
Output: Approved geometry baseline
- 2
Mark contact and motion
Show allowed contact, keep-out areas, load or movement direction and required clearances.
Output: Interface and motion map
- 3
Define material and environment
State buyer material specifications, temperature, cleaning, exposure and identification needs that actually apply.
Output: Material requirement
- 4
Plan installation and service
Add mounting access, replacement method, quantity, destination and sample-review expectations.
Output: Quotation-ready component brief
Guides & Resources
Learn more about choosing and using custom rubber rack protection pads.
Applications, Engineering & Buyer Tools
Move from product discovery to a project specification, application check and inspection plan.
Custom Rubber Rack Protection Pads — Frequently Asked Questions
Is the custom rubber rack protection pads a standard catalog item?+
It is custom configured for the part, rack interface and service conditions. Use the reference images to choose a product family, then provide project data for final dimensions and material selection.
What information is needed to quote custom rubber rack protection pads?+
Please provide contact function, load/movement condition, compound callout, dimensions, attachment and environment, plus target quantity, destination and any required material or inspection specification. HAOFU can then define the design, sample and quotation scope.
Can it be supplied for an existing rack or trolley?+
Potentially. Send the existing rack drawing, mounting details, photographs and the approved part data. The team will review fit, access, replacement and any effect on the complete carrier before proposing an interface.
How do I choose the right material and configuration?+
Choose compound, hardness, texture and attachment from the contact load, movement and environment. Confirm the final choice on the drawing and, where needed, with a sample using the actual part and rack interface.
How is the design checked before volume production?+
Project inputs are converted into a drawing and sample plan. Review fit, contact, access, handling and any specified test or inspection criteria before production.
