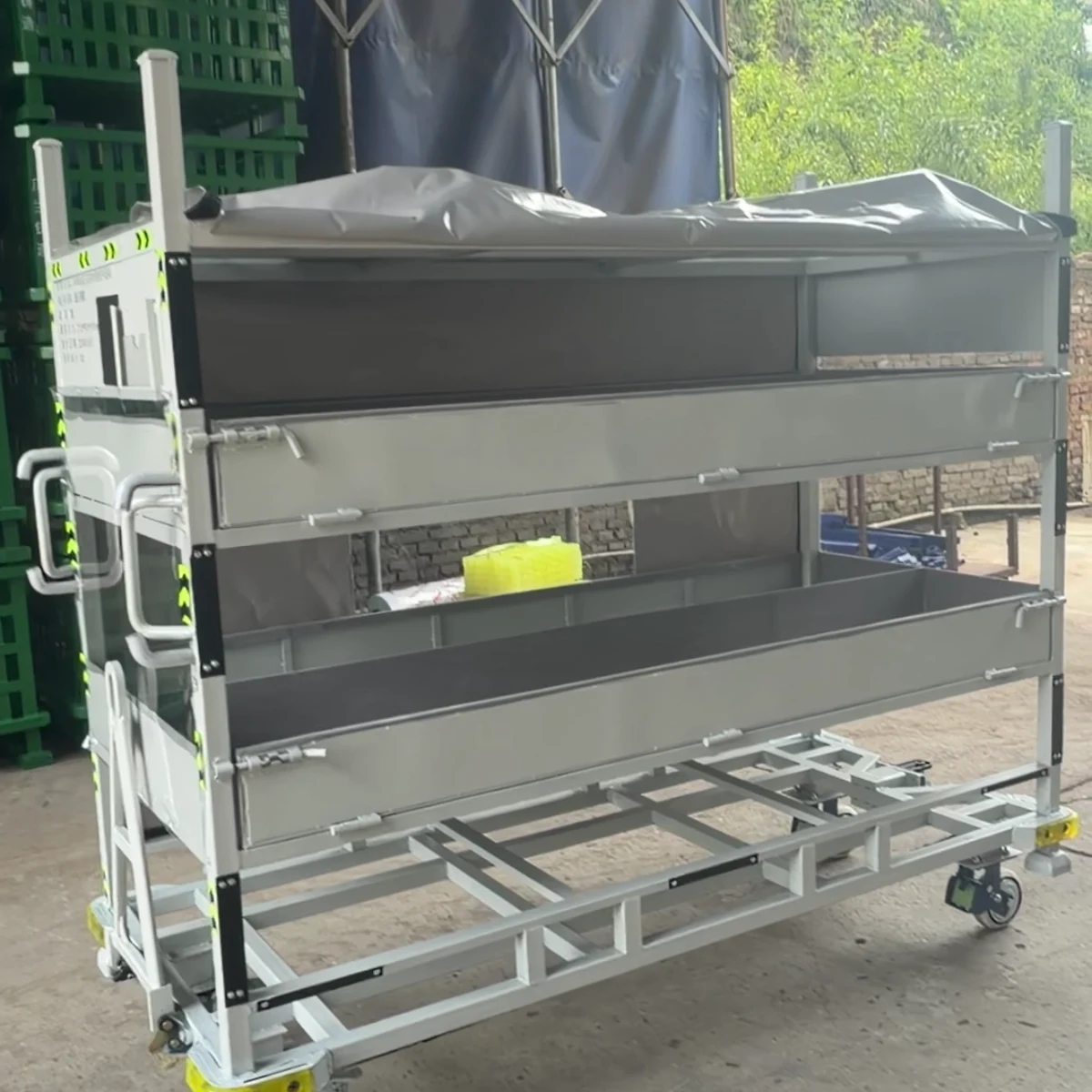

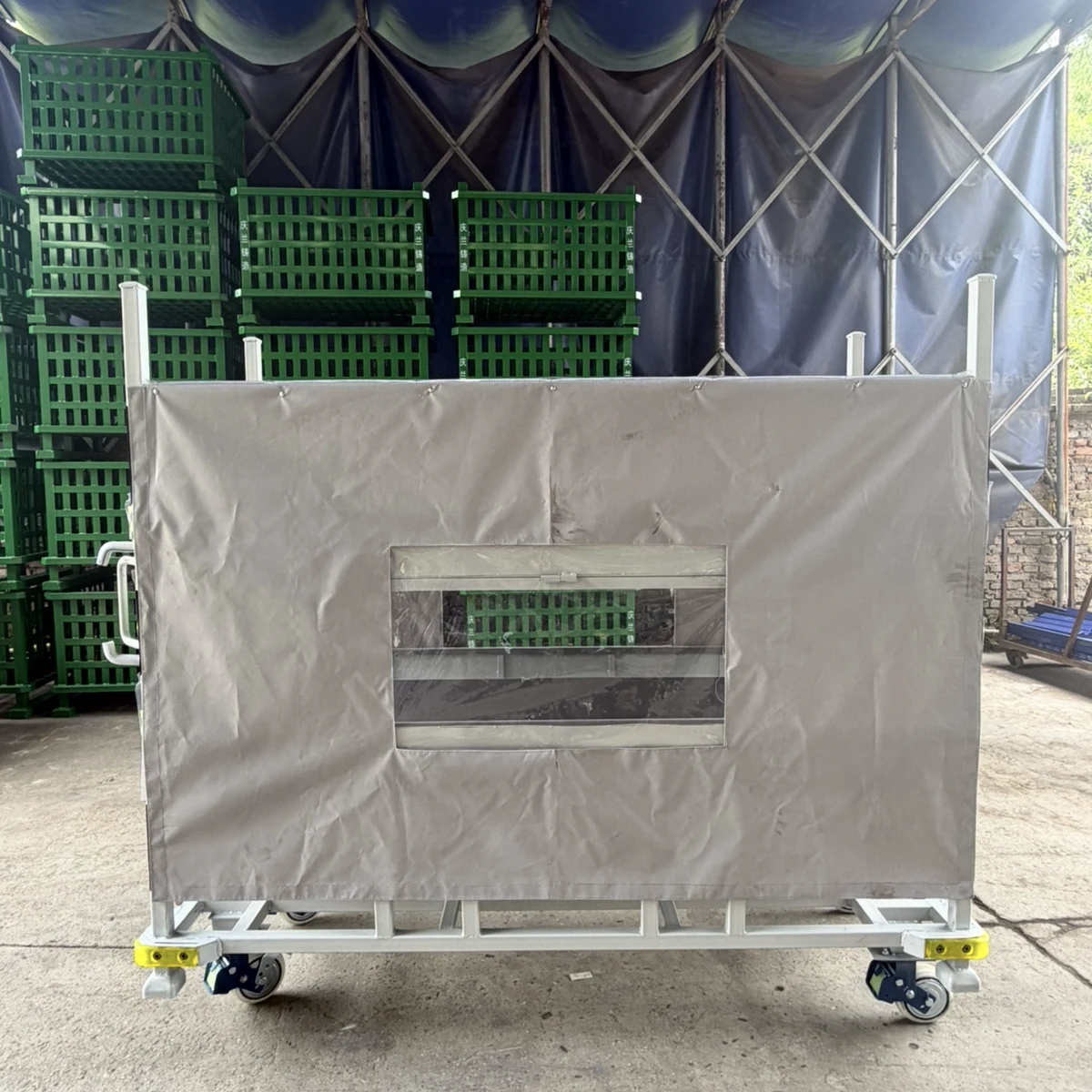

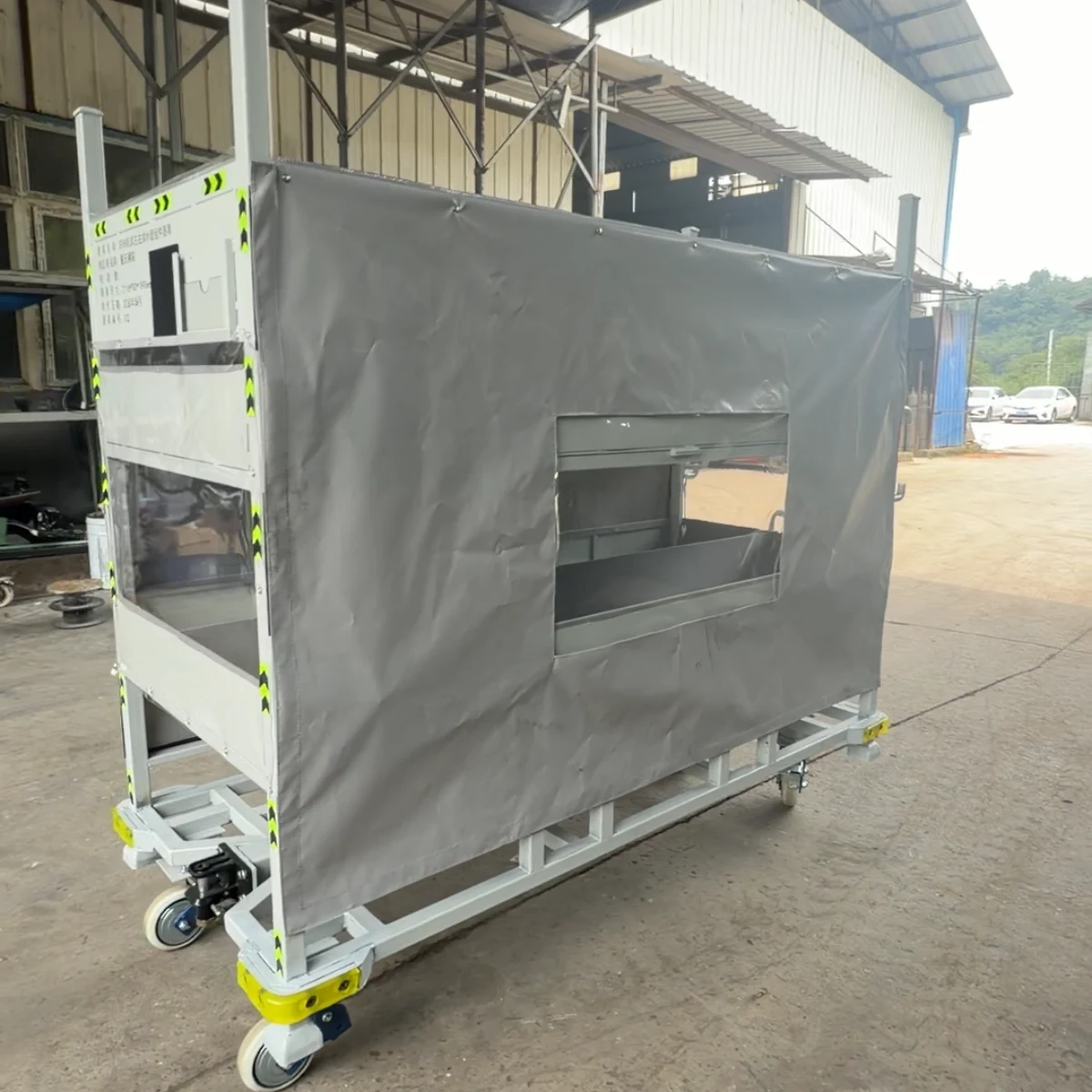

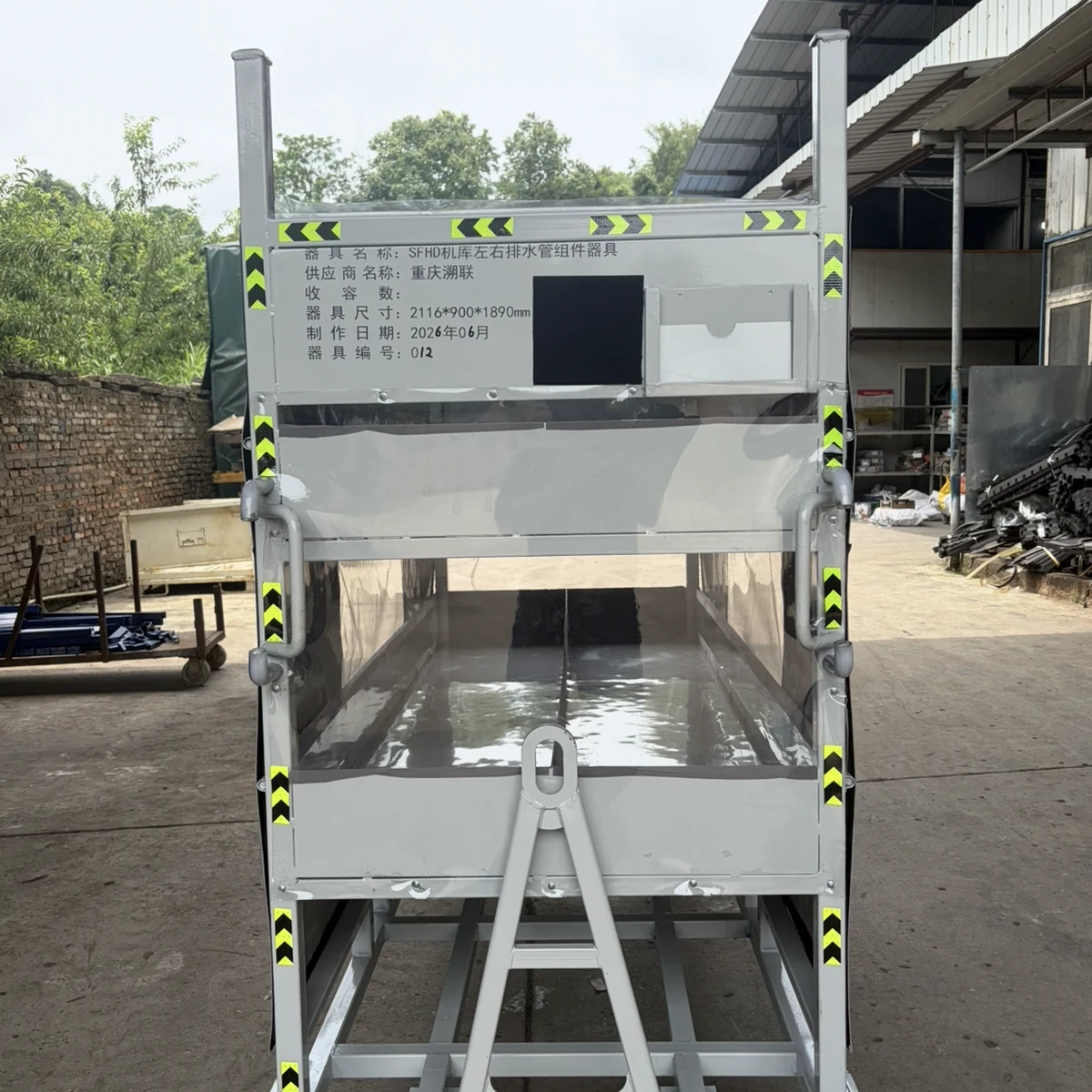

Real product photo of a covered returnable parts trolley with enclosure cover, access panel and wheeled returnable frame

Covered Returnable Parts Trolley

A covered returnable parts trolley combines enclosure panels, a wheeled steel base and an internal part layout. Compare the access panel, loading direction and caster route for in-plant transfer and returnable transport.

TL;DR

A covered returnable parts trolley is a reusable steel logistics carrier configured from the actual part, its protected contact points, loading sequence and handling route. This photographed example shows enclosure cover, access panel and wheeled returnable frame; send the part data, route, carrier quantity and destination for a custom manufacturer quotation.

At a Glance

Structure
Custom welded steel returnable rack or trolley
Visible example
an enclosure cover, access panel and wheeled steel base
Part protection
Dunnage, dividers and non-metal contact materials as specified
Handling
Casters, forklift or tow interface selected for the agreed route
Capacity
Confirmed from the approved part, quantity and handling conditions
Identification
Project label, asset ID or traceability method as specified

Built example

Real photos of a custom-built configuration. Dimensions, part count and handling details are specified for each buyer's programme.

Real product photo of a covered returnable parts trolley with enclosure cover, access panel and wheeled returnable frame — configuration view 1Real product photo of a covered returnable parts trolley with enclosure cover, access panel and wheeled returnable frame — configuration view 2Real product photo of a covered returnable parts trolley with enclosure cover, access panel and wheeled returnable frame — configuration view 3Real product photo of a covered returnable parts trolley with enclosure cover, access panel and wheeled returnable frame — configuration view 4

Description

A covered returnable parts trolley is a purpose-built returnable carrier, not a catalogue-size rack. This real photographed configuration uses enclosure cover, access panel and wheeled returnable frame. For purchasing and packaging engineers, the correct design starts with the part drawing, weight, contact surfaces, quantity per carrier and handling route.

What this configuration is designed to solve

It keeps part positions, loading access and protection aligned through storage, line-side movement and the return loop. Use the photographed frame, dunnage and access mechanism to discuss the arrangement you need, then set dimensions, part count and handling details from your own drawing and route.

Specification inputs for a custom covered returnable parts trolley

Buyer inputDesign decision
Part drawing, sample and sensitive contact areasDunnage profile, clearance and retention
Parts per carrier and loading sequenceLevel count, access side and presentation
Manual, tugger or forklift routeCasters, base, tow or lift interface
Storage and empty-return conditionCover, folding, stacking or nesting concept
Destination and inspection requirementsFinish, identification and acceptance plan
Part dataConcept reviewSample fitApproved build
Decision flow for a project-specific returnable rack; final dimensions, capacity and handling approval come from the buyer's part and route.

Decisions to settle before requesting a quote

  • Choose the stable part orientation and mark the surfaces that may contact the dunnage.
  • Check the loading motion and clearance at every tray instead of copying another component's layout.
  • List each caster, tugger or forklift move so the base works across the complete route.
  • State how the carrier is identified, returned and inspected during repeat use.

Start with a usable RFQ

Send the drawing or sample, part weight, target quantity per carrier, loading direction, handling route, destination and expected order quantity. HAOFU can turn this into a customisation brief and sample-review path. Read the related buyer guide, the protection and handling guide, the rack RFQ checklist.

Useful planning references: OSHA materials-handling guidance covers powered-truck loading and transfer considerations. GS1 GRAI explains a standard identifier for reusable transport assets when the buyer's tracking system needs one.

Configuration comparison

Compare covered returnable parts trolley configurations by loading task

Choose the access and support arrangement from the part path and plant route, then set carrier density inside those constraints.

ConfigurationUse it whenMain trade-offSend with the RFQ
Fixed positionsThe part enters every position directly and repeatable supports suit one controlled geometry.Simple operating sequence; sufficient hand, fixture and part clearance may require more pitch.Part CAD, support map, entry direction, clearance and positions per carrier.
Opening or tilting levelsA level must move to expose positions below or improve the loading angle.Better access at selected levels; pivots, open-state control and closing clearance must be resolved.Moving mass, opening arc, loading sequence, operator side and hold-open requirement.
Covered mobile configurationParts need enclosure while the carrier moves between defined stations.Adds route capability; cover, base, access and return operation must remain compatible.Exposure, viewing, floor route, caster/brake state and transfer details.

From requirement to quotation

Prepare a covered returnable parts trolley RFQ

Move from the controlled part to the load motion and complete logistics route before fixing the rack or trolley envelope.

  1. 1

    Control the part

    Send the current CAD or drawing, mass, centre of gravity, variants and revision.

    Output: Approved part baseline

  2. 2

    Map supports and access

    Mark permitted contact, keep-out features, loading direction and operator or fixture clearance.

    Output: Contact and motion map

  3. 3

    Define the route

    List manual, tow and parking states, floor conditions and turns.

    Output: Handling-interface brief

  4. 4

    Request the quote

    Add pieces per carrier, carrier quantity, destination, identification and sample-review requirements.

    Output: Comparable custom proposal

Original project video

See the photographed configuration in motion

This embedded video is supplied with this product's real photo set. It documents the configuration only; final specifications remain project-specific.

Applications, Engineering & Buyer Tools

Move from product discovery to a project specification, application check and inspection plan.

Covered Returnable Parts Trolley — Frequently Asked Questions

Is this covered returnable parts trolley an off-the-shelf product?+

No. The images show a real custom-built configuration with an enclosure cover, access panel and wheeled steel base. HAOFU confirms the final frame, part positions, access and handling details from your component and logistics flow.

What information is needed to quote the rack or trolley?+

Please provide a part drawing, 3D data, photo or sample; part weight; quantity per carrier; sensitive contact areas; loading direction; handling route; destination; and target quantity. Those inputs make the quotation and engineering scope usable.

Can the dunnage be changed for our component?+

Yes. Locators, foam, rubber, plastic blocks, dividers and retention features are selected around the approved component's contact points and clearance needs. They are not copied from an unrelated rack.

Can it be moved by casters, forklift or tugger?+

The handling interface is selected from the real route and equipment. A project may use casters, forklift entry, a tow connection or another agreed interface; clearances, load conditions and operating rules need review before approval.

How should a returnable rack be identified?+

The buyer can specify a project label, barcode, RFID or other asset-identification approach. GS1 describes GRAI as an identifier suitable for reusable transport assets when a shared tracking system requires it; the actual identifier owner and data process are agreed by the supply-chain parties.

Discuss your part or handling task

Send a photo, drawing or short description to start your enquiry.

Contact Us Now
WhatsApp Call
