Covered Textile Pocket Parts Rack
A configurable steel rack with suspended textile pockets for separated automotive-part positions and an optional protective curtain with a viewing panel. Pocket material, cell geometry, frame, access and handling interfaces are specified from the actual component and route.
HAOFU Engineering Team
Reviewed 2026-08-31
A covered textile pocket rack is a returnable steel carrier whose sewn cells separate defined parts while a removable or opening curtain controls exposure and access. It should be approved from the part surface, pocket geometry, loading method and cleaning expectations—not from a generic bag count.
At a Glance
- Configuration
- Custom to the approved part, rack and route
- Primary role
- Separated textile cells with optional curtain protection
- Required inputs
- part data, sensitive surfaces, cell count, loading direction, textile requirements and route
- Material / interface
- Confirmed in the approved project drawing and specification
- Validation
- Fit, access, handling and controlled requirements agreed before production release
- Supply scope
- Component-only or integrated rack/trolley scope, as quoted
Real product views
Product Gallery

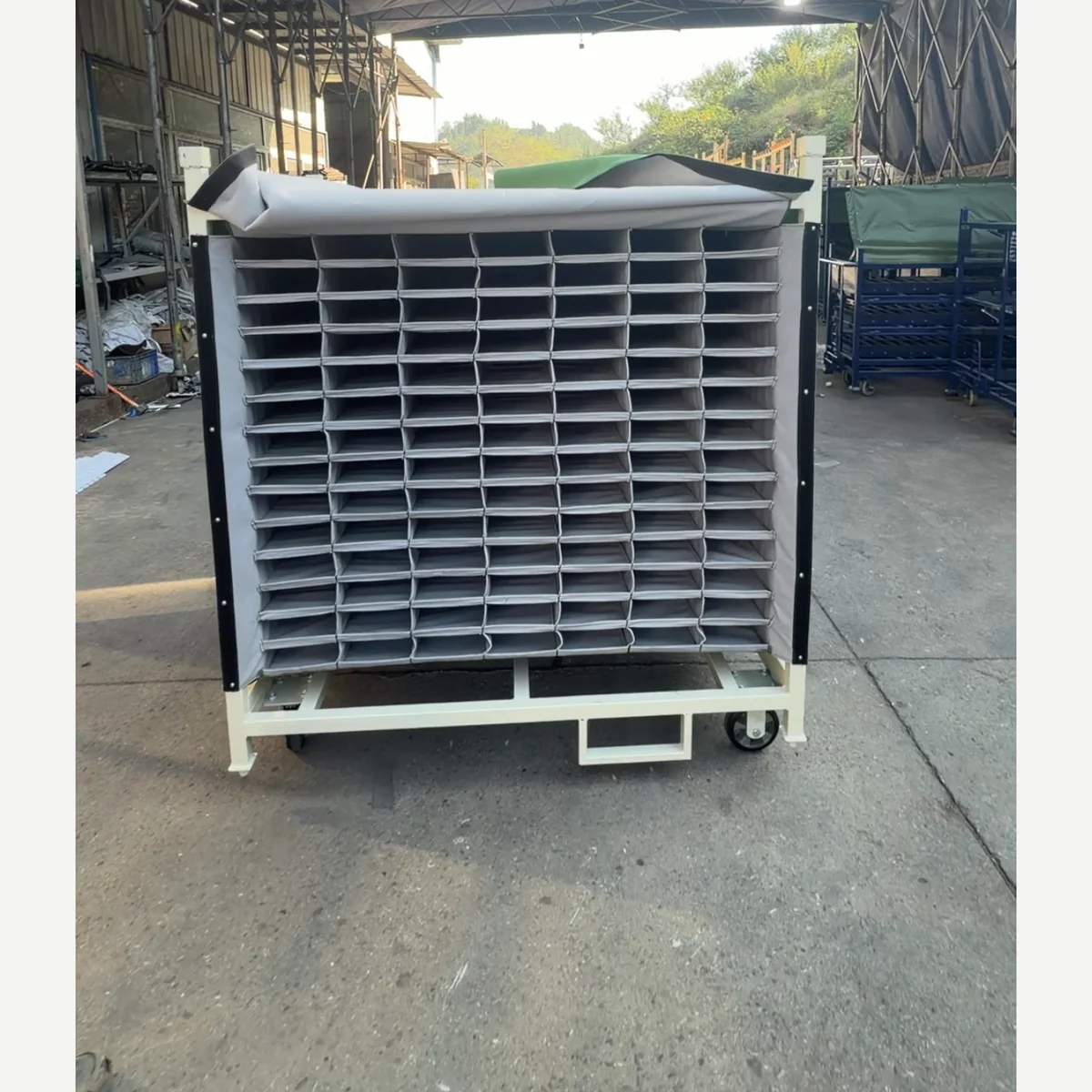

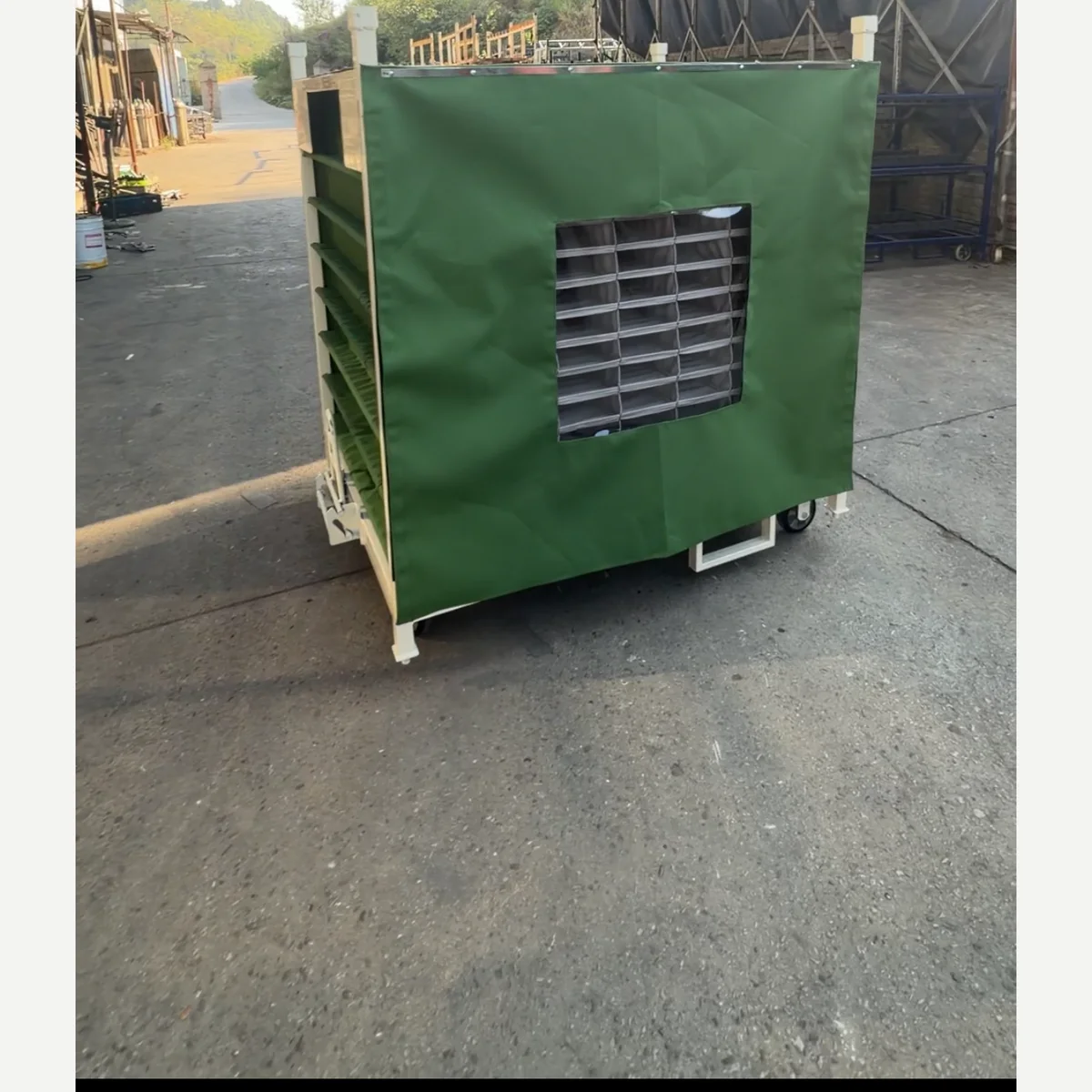

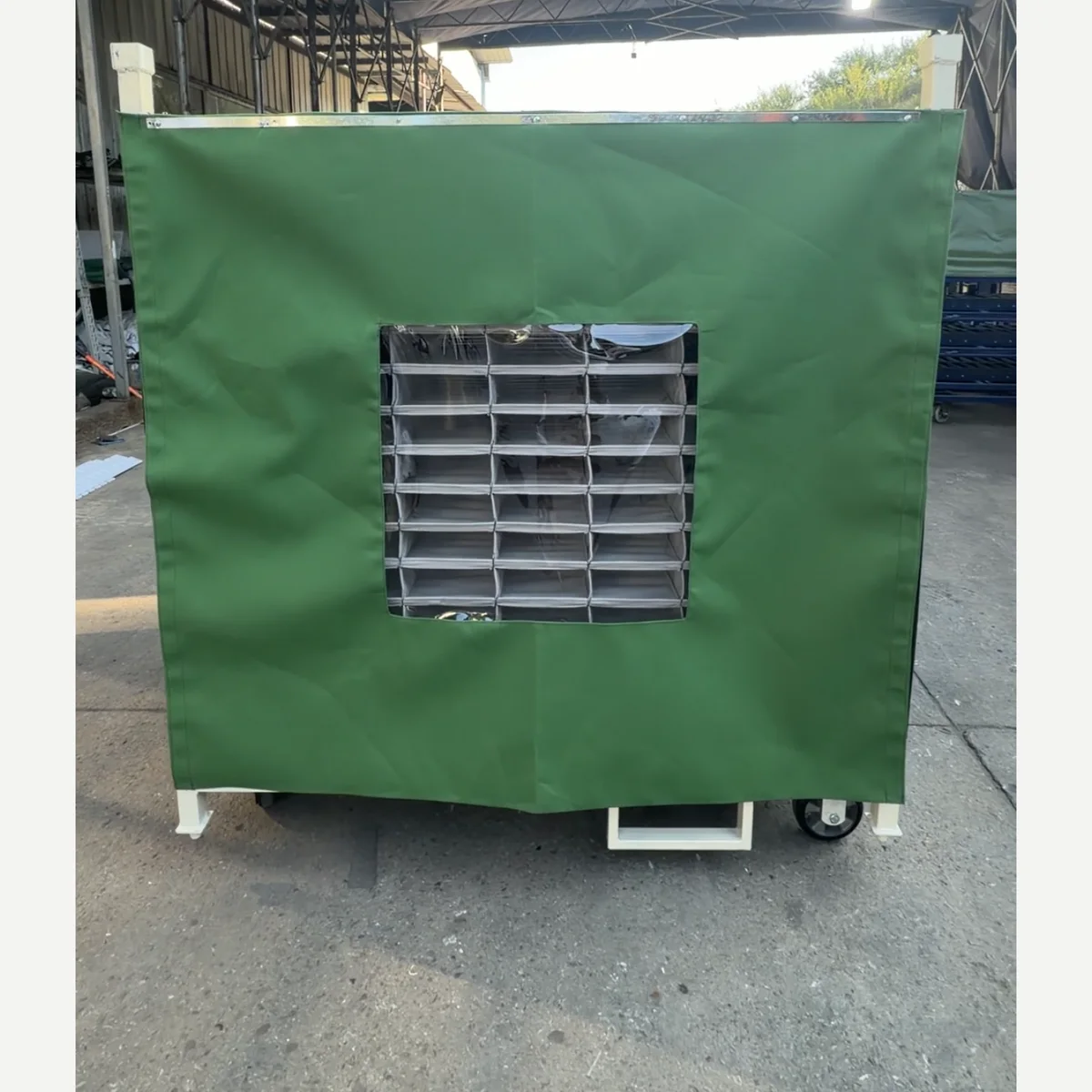

Real user-supplied views show open-pocket and covered states. The number of cells, textile system, frame, curtain and clear panel remain project-specific.
Description
Covered Textile Pocket Parts Rack is a project-specific product or rack component used within returnable automotive packaging and in-plant material handling. HAOFU develops it around the approved part, contact restrictions, access, handling route and buyer specification. It is not presented as a universal off-the-shelf performance specification.
This page owns the commercial intent for covered textile pocket parts rack. Buyers comparing complete carriers should also review Automotive Parts Racks; the main product page remains the owner for the broader rack or trolley category.
What must be decided before design release
| Input area | Design decision |
|---|---|
| Part surface and geometry | Choose cell shape, contact fabric, stiffener and permitted seams. |
| Pack orientation | Set pocket pitch, depth, opening direction and retention. |
| Access and cover | Define curtain openings, clear panel and loading-side clearance. |
| Inspection and service | Agree removable sections, cleaning method and replaceable components. |
Suitable application scope
- Separated handling of trim, interior or other surface-sensitive components
- Line-side sequencing with one part position per pocket
- Closed-loop logistics requiring a reusable rack-and-textile system
Claim boundary: Textile selection cannot be inferred from appearance alone. Scratch, lint, ESD, flame, chemical and cleaning requirements must be stated and verified for the programme.
RFQ information to send
- Part drawing or sample and surface restrictions
- Required parts per rack and sequence
- Pocket loading direction and operator reach limits
- Textile, cleanliness or static-control requirements
- Handling route, return condition and destination
HAOFU manufactures in China and ships globally. Start with the custom rack and trolley design process, then send the controlled requirements for review. Final dimensions, material callouts, capacity, interfaces, validation and commercial terms belong in the approved quotation and drawing.
How the requirement moves to approval
- Define: collect controlled part, rack, route and buyer-standard inputs.
- Design: agree contact geometry, interfaces, access and maintainable components.
- Review: check the concept against loading, handling, return and service conditions.
- Validate: approve the sample and recorded acceptance criteria before production release.
Industry terminology references
The following industry pages were used to confirm buyer terminology and specification inputs. Their company-specific claims are not adopted as HAOFU claims.
Guides & Resources
Learn more about choosing and using covered textile pocket parts rack.
Applications, Engineering & Buyer Tools
Move from product discovery to a controlled requirement, application review and inspection plan.
Covered Textile Pocket Parts Rack — Frequently Asked Questions
Is the covered textile pocket parts rack a standard catalog item?+
No. It is configured from the controlled component, rack interface, duty and buyer requirements. Reference images show the product family; they do not define the final dimensions, material or performance.
What information is needed to quote covered textile pocket parts rack?+
Please provide part data, sensitive surfaces, cell count, loading direction, textile requirements and route, plus target quantity, destination and any controlled buyer standard. HAOFU can then define what is included in the design, sample and quotation scope.
Can it be supplied for an existing rack or trolley?+
Potentially. Send the existing rack drawing, mounting details, photographs and the approved part data. The team will review fit, access, replacement and any effect on the complete carrier before proposing an interface.
What does the reference image prove?+
It shows a configuration or component type only. It does not establish fabric properties, cell capacity, cleanliness or surface-protection performance. Final claims belong to traceable material data, an approved drawing and agreed validation records.
How is the design approved before volume production?+
The controlled inputs are converted into a design and sample scope. The buyer reviews fit, contact, access, handling and any specified test or inspection criteria before production release.
