Custom Nylon Rack Support Blocks
Machined or formed nylon support, spacer and locating blocks for defined contact points on automotive parts racks. Geometry, polymer grade, fit, fasteners and wear checks are selected from the actual part and rack duty.
HAOFU Engineering Team
Reviewed 2026-08-31
A nylon rack block is a replaceable contact or locating component, not a universal protection guarantee. Confirm the part interface, load direction, allowed movement, material grade, fastener arrangement, environment and inspection criteria before release.
At a Glance
- Configuration
- Custom to the approved part, rack and route
- Primary role
- Replaceable support, spacer or locating contact
- Required inputs
- part/rack drawings, load direction, contact zone, polymer grade, tolerance and mounting
- Material / interface
- Confirmed in the approved project drawing and specification
- Validation
- Fit, access, handling and controlled requirements agreed before production release
- Supply scope
- Component-only or integrated rack/trolley scope, as quoted

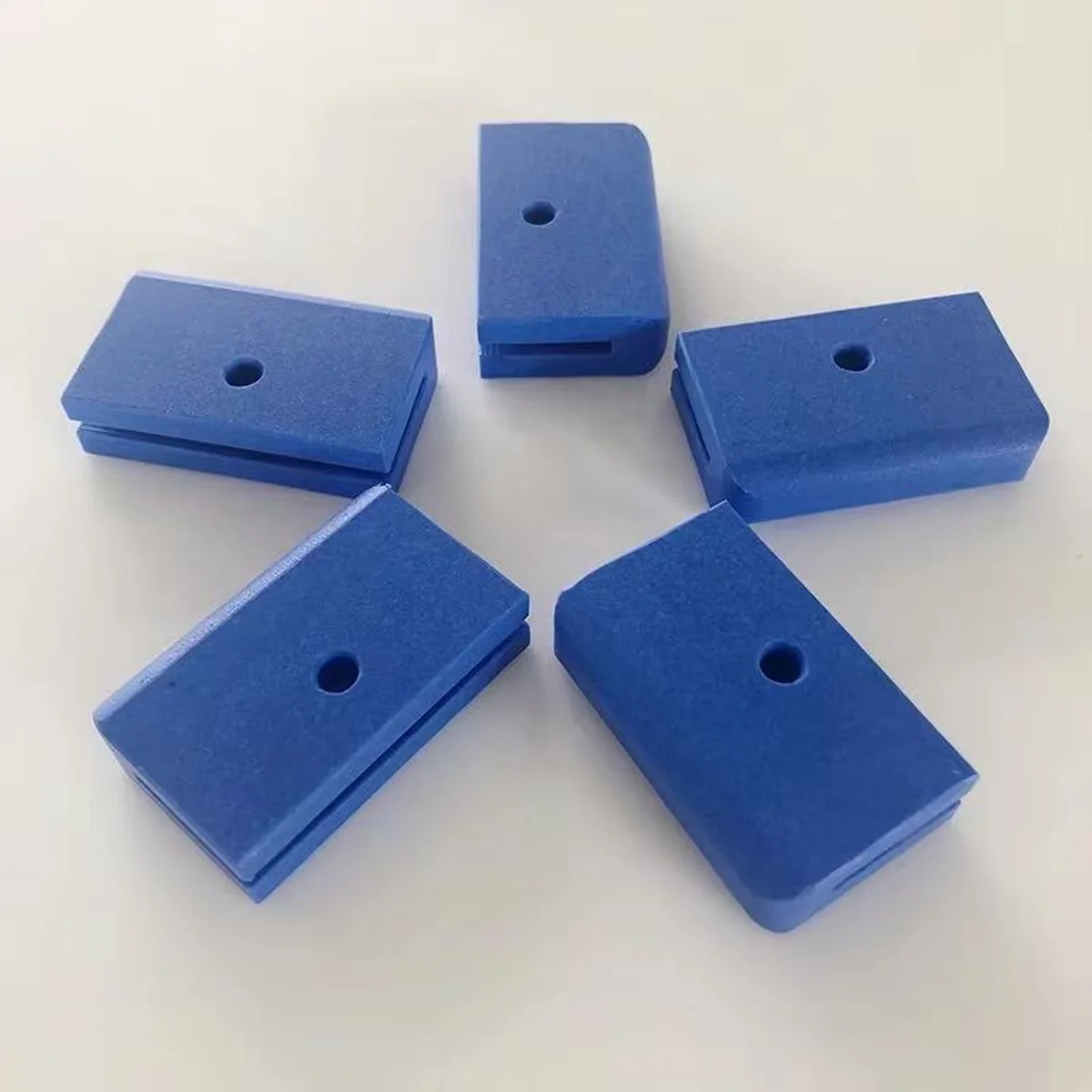

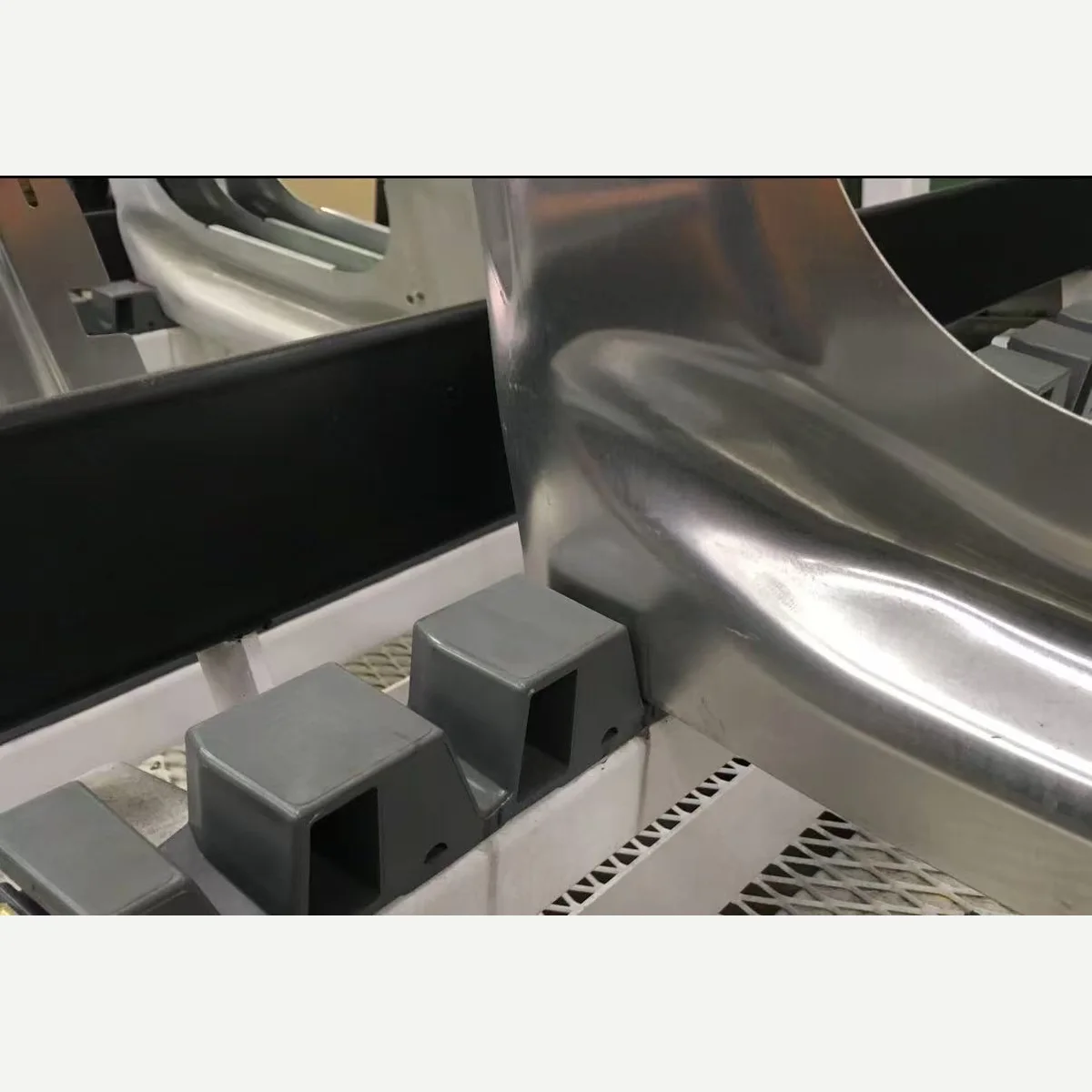

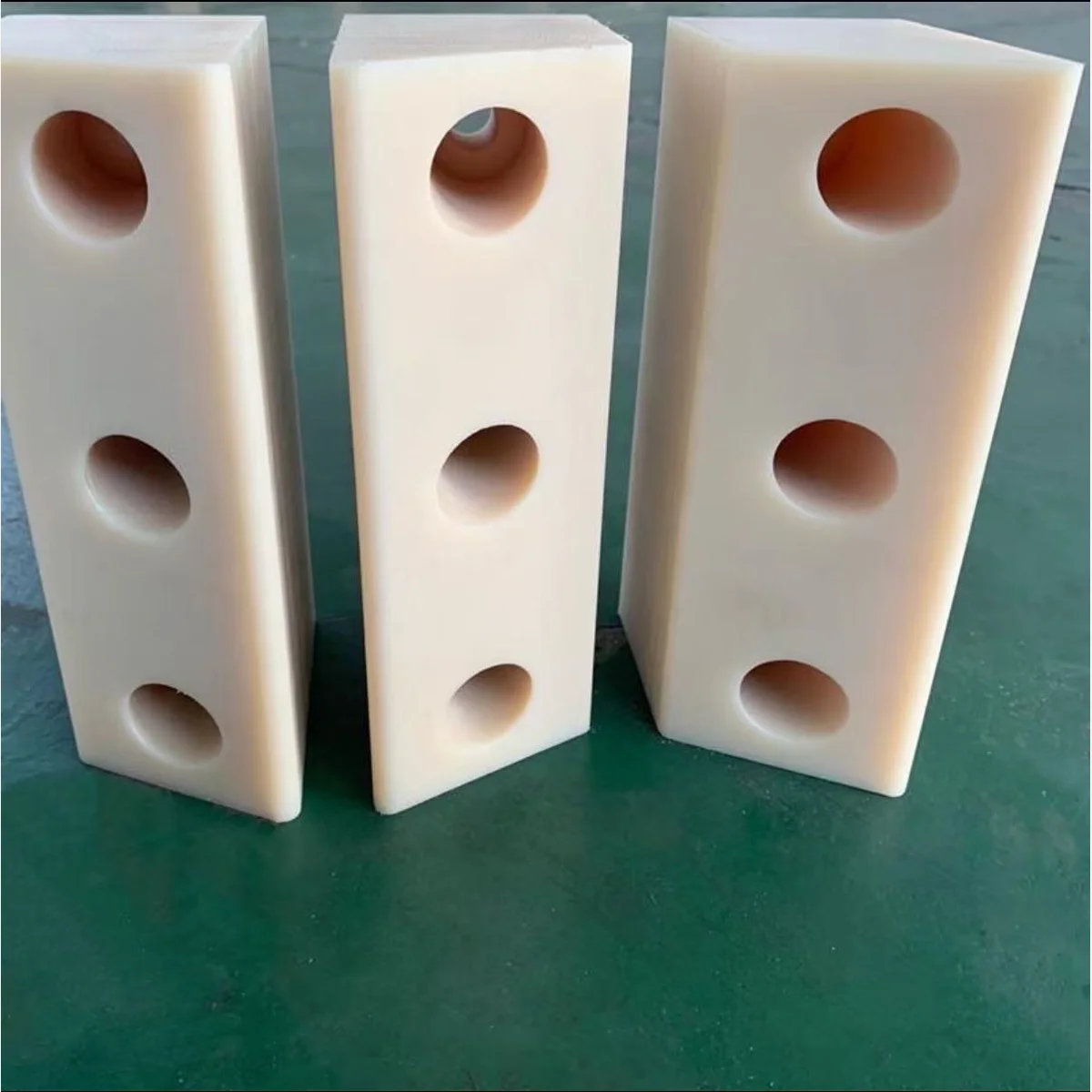

Block references
Product Gallery
Reference shapes demonstrate custom supports and spacers; final details follow the controlled part and rack interface.
Description
Custom Nylon Rack Support Blocks is a project-specific product or rack component used within returnable automotive packaging and in-plant material handling. HAOFU develops it around the approved part, contact restrictions, access, handling route and buyer specification. It is not presented as a universal off-the-shelf performance specification.
This page owns the commercial intent for custom nylon rack support blocks. Buyers comparing complete carriers should also review Automotive Parts Racks; the main product page remains the owner for the broader rack or trolley category.
What must be decided before design release
| Input area | Design decision |
|---|---|
| Part interface | Locate support and guide faces only at permitted contact zones. |
| Grade and environment | Confirm polymer grade, temperature, moisture, chemical and buyer requirements. |
| Fit and movement | Set clearance, sliding or fixed contact and retention features. |
| Maintenance | Define fastener access, wear limit and replacement method. |
Suitable application scope
- Support and guide blocks for stamped or machined components
- Replaceable spacers on steel racks
- Part-specific locating features in returnable carriers
Claim boundary: Strength, impact, wear, dimensional stability and chemical behavior vary by material grade and condition. No generic nylon performance is promised.
RFQ information to send
- Controlled part/rack drawing
- Load direction and permitted contact area
- Required nylon/polymer grade
- Tolerance, surface and fastener requirements
- Environment and inspection plan
HAOFU manufactures in China and ships globally. Start with the custom rack and trolley design process, then send the controlled requirements for review. Final dimensions, material callouts, capacity, interfaces, validation and commercial terms belong in the approved quotation and drawing.
How the requirement moves to approval
- Define: collect controlled part, rack, route and buyer-standard inputs.
- Design: agree contact geometry, interfaces, access and maintainable components.
- Review: check the concept against loading, handling, return and service conditions.
- Validate: approve the sample and recorded acceptance criteria before production release.
Industry terminology references
The following industry pages were used to confirm buyer terminology and specification inputs. Their company-specific claims are not adopted as HAOFU claims.
Guides & Resources
Learn more about choosing and using custom nylon rack support blocks.
Applications, Engineering & Buyer Tools
Move from product discovery to a controlled requirement, application review and inspection plan.
Custom Nylon Rack Support Blocks — Frequently Asked Questions
Is the custom nylon rack support blocks a standard catalog item?+
No. It is configured from the controlled component, rack interface, duty and buyer requirements. Reference images show the product family; they do not define the final dimensions, material or performance.
What information is needed to quote custom nylon rack support blocks?+
Please provide part/rack drawings, load direction, contact zone, polymer grade, tolerance and mounting, plus target quantity, destination and any controlled buyer standard. HAOFU can then define what is included in the design, sample and quotation scope.
Can it be supplied for an existing rack or trolley?+
Potentially. Send the existing rack drawing, mounting details, photographs and the approved part data. The team will review fit, access, replacement and any effect on the complete carrier before proposing an interface.
What does the reference image prove?+
It shows a configuration or component type only. It does not establish nylon grade, strength, wear, impact or environmental compatibility. Final claims belong to traceable material data, an approved drawing and agreed validation records.
How is the design approved before volume production?+
The controlled inputs are converted into a design and sample scope. The buyer reviews fit, contact, access, handling and any specified test or inspection criteria before production release.
