Custom Automotive Connecting Rod Rack with Pneumatic Trays
See custom automotive connecting rod rack with pneumatic trays in an automotive-parts logistics application. The video highlights casters, pneumatic assistance. It gives packaging engineers and procurement teams a product-level view of the rack arrangement shown for the stated component or application. Look at the frame, part-contact areas, loading access, base and moving features that are actually visible, then compare them with your own part size, weight, orientation and protection needs. The related product category is Automotive Parts Racks. For a custom quotation, send the part drawing or photos, quantity per rack, loading method, forklift or line-side conditions, stacking and empty-return needs, project quantity and destination.
By HAOFU Engineering Team · Updated 2026-08-10
Video focus: Custom Automotive Connecting Rod Rack with Pneumatic Trays. Recorded details: Casters, Pneumatic assistance. Closest product path: Automotive Parts Racks. Buyer decision: confirm part fit, access, handling and return conditions for the actual project. Next step: send drawings and route requirements through HAOFU customization.

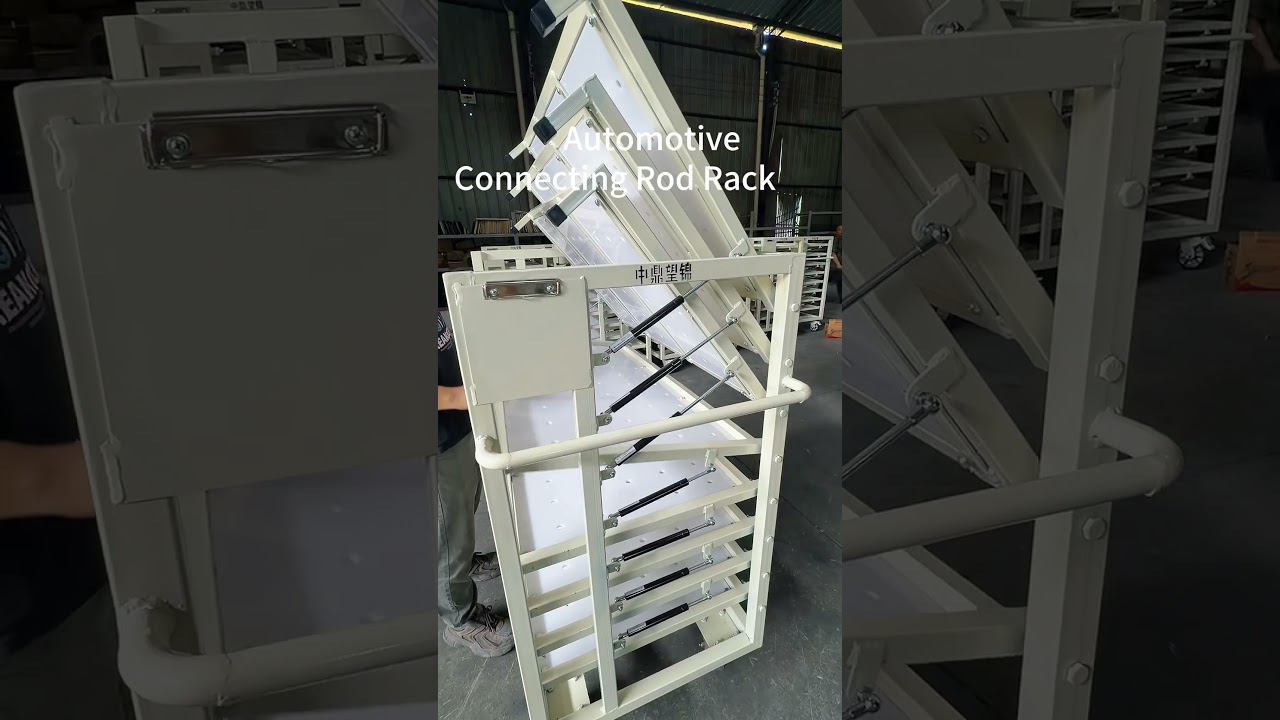

Direct answer: the custom automotive connecting rod rack shown in this video is a steel rack with pneumatic-assisted trays, dedicated positioning and casters. It is designed around the connecting rod so the parts can be loaded, separated and moved through production-line and warehouse logistics.
What the connecting rod rack is designed to solve
Connecting rods need repeatable positioning during storage and movement. The video post highlights pneumatic-assisted trays, dedicated positioning, a steel structure, smooth-rolling casters and customization to the automotive part. Those features describe the design direction; the final interface must follow the actual component and route.
| Rack feature | Handling intent | Project input |
|---|---|---|
| Pneumatic-assisted trays | Support ergonomic loading and access | Tray travel, assist conditions and service access |
| Dedicated positions | Separate and locate the rods | Part geometry, contact surfaces and quantity |
| Steel structure | Provide the reusable rack frame | Route, handling equipment and finish |
| Casters | Move the rack through the facility | Floor, turning, braking and towing conditions |
Design the rack around the part and the route
Good part protection is a combined rack-and-dunnage problem. The custom dunnage reference from Southern Perfection explains how separators and locators are designed for specific parts. MHI's packaging overview is useful when checking the relation between the component, packaging, handling and distribution environment.
Common mistakes in connecting rod rack specifications
- Defining tray count without defining the rod orientation and contact points.
- Selecting casters without describing floors, thresholds and turning space.
- Adding pneumatic hardware without an access or maintenance review.
- Calling a rack “universal” before testing the actual component fit.
Explore custom automotive parts racks, pair the project with material handling trolleys where the route requires it, and read the rack design guide before sending your drawings through customization. Watch the original connecting rod rack Short.
الأسئلة الشائعة
- What does the Custom Automotive Connecting Rod Rack with Pneumatic Trays video show?
- It shows mobility: Casters; opening support: Pneumatic assistance. Use the example to identify useful features, then specify a new rack from your own part and route requirements.
- Which HAOFU product is most closely related to this video?
- The closest catalog route is Automotive Parts Racks. Use that product page to understand the category, then submit project data for a configuration matched to the actual part and route.
- Are the video details standard specifications for every project?
- The details shown describe this example. Dimensions, capacity, materials, interfaces and finish for a new project are selected from the actual part, handling route and quotation requirements.
- What information should a buyer send for a related project?
- Start with part drawing, sample photos and protected contact surfaces, quantity and orientation required in each rack, loading direction, operator access and handling equipment, stacking, storage and empty-return requirements. These inputs let the engineering discussion focus on part fit and the real handling route.
- How can I request a quotation for a similar rack?
- Use the customization form to send drawings, photos, quantity per rack, handling conditions, project volume and destination. HAOFU can then review the application and respond around the supplied requirements.
