Steel Pallets & Racks for Gearbox Turnaround & Transport

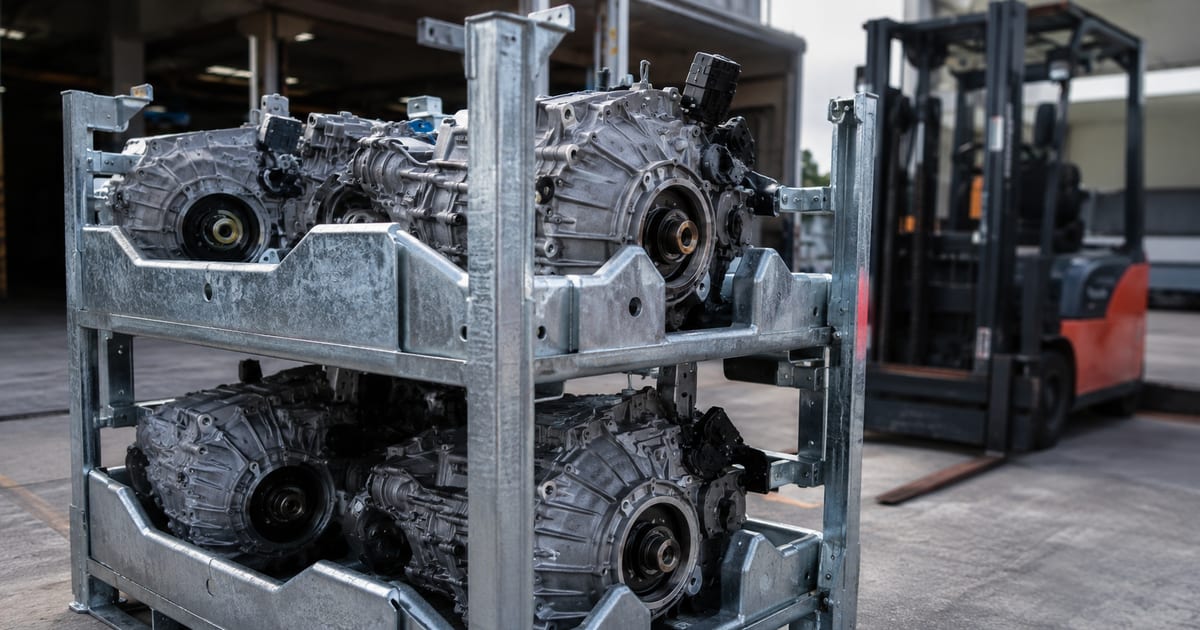

Steel pallets and racks for gearbox turnaround and transport hold heavy transmissions in fixed orientation, protect machined and sealing faces, and stack safely for returnable transport between plants. They are engineered to the gearbox's weight and contact points, with oil-tolerant finishes and precise cradles.
Steel pallets for gearbox turnaround transport have to solve three problems at once: they carry a heavy, dense transmission, they protect its machined and sealing faces, and they stack safely for returnable transport between plants. Generic pallets cannot do this — automotive gearbox racks for transportation are engineered around the gearbox's weight, centre of gravity and contact points.
Why gearboxes need purpose-built steel racks
A gearbox concentrates a lot of mass in a small footprint, carries oil residue, and has precision mating faces, splined shafts and sealing surfaces that must not be knocked. The rack must fixture each unit in a fixed orientation, cradle it away from its machined faces, and tolerate oil without corroding.
Design requirements for gearbox racks
| Challenge | Design response |
|---|---|
| High concentrated mass | Heavier gauge steel; verified single & stacked load rating |
| Machined / sealing faces | Contoured cradles and EVA pads that avoid the mating surfaces |
| Oil residue | Galvanized or oil-tolerant finish; drip-friendly base |
| Orientation | Unit-specific pockets so each gearbox sits the same way |
| Return transport | Stacking feet or foldable frame to cut empty-return freight |
Steel pallet or full rack — which for gearbox transport?
A reinforced steel pallet with a fixture suits single-layer, forklift-handled turnaround inside a plant. A taller stackable rack with multiple gearbox cradles is better for dense storage and returnable transport between suppliers and the OEM. The right choice depends on quantity per trip, stacking height and how the units are lifted. Our steel pallet load-capacity guide explains how to size the structure.
Protecting faces and controlling oil
Design replaceable EVA or rubber cradles that support the gearbox on its casting bosses, never on sealing or mating faces. A galvanized finish tolerates oil film and outdoor staging; safe stacking and manual handling should follow OSHA materials-handling guidance, and returnable-transport labelling can align with Odette automotive standards.
Build a gearbox transport rack
HAOFU engineers steel pallets and racks for gearbox turnaround and transport around your exact transmission. See related work on part protection, watch a durable stackable carrier in action, or start on our customization page. Send your gearbox drawings and we will reply within 24 hours.
Frequently Asked Questions
- Why do gearboxes need purpose-built steel racks?
- A gearbox concentrates a lot of mass in a small footprint, carries oil residue, and has precision mating faces, splined shafts and sealing surfaces that must not be knocked. The rack fixtures each unit in a fixed orientation, cradles it away from machined faces, and tolerates oil without corroding — which a generic pallet cannot do.
- Should I use a steel pallet or a full rack for gearbox transport?
- A reinforced steel pallet with a fixture suits single-layer, forklift-handled turnaround inside a plant. A taller stackable rack with multiple cradles is better for dense storage and returnable transport between plants. The choice depends on quantity per trip, stacking height and how the units are lifted.
- How are machined and sealing faces protected?
- The rack supports the gearbox on its casting bosses or designed mounting points using contoured EVA or rubber cradles, never on sealing or mating surfaces. This keeps precision faces clear of steel throughout handling and transport.
- What finish handles oil residue on gearbox racks?
- A galvanized finish tolerates oil film and outdoor staging better than paint, and a drip-friendly base keeps residue off the parts below. The right finish depends on whether the rack stays indoors or is stored and transported outside.
